Inductive Sensor Ifm I22002
IFM CATEGORIES

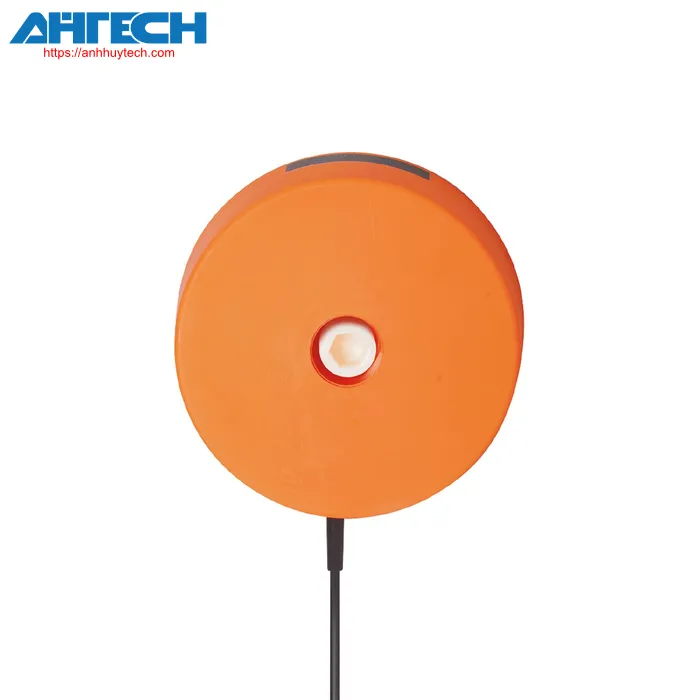

Inductive Sensor I22002
Brand: Ifm
Product Code: SIY-2120-BBOW
- Extended sensing range of 120 mm
- Active base with a diameter of Ø 164 mm
- Suitable for use in the steel and metal sectors
- Simplified adjustment of the sensing range using a variable resistor
- Featuring AC output for operation in AC power networks
Contact via Zalo
Phone call
Product characteristics
| Output feature | default closed |
| Detection range[mm] | 30...120 |
| Housing | cylindrical |
| measurements[mm] | Ø 164 / L = 63 |
| AC frequency[Hz] | 47...63 |
| Voltage for operation[V] | 90...250 AC |
| Safety feature rating | II |
| Reverse polarity safeguard | no |
| Weight[g] | 1231 |
| Housing | cylindrical |
| Installation | non-recessed mountable |
| measurements[mm] | Ø 164 / L = 63 |
| Substance | enclosure: PBT; base cover: aluminum |
| Connection | Cable: 2 m, PVC; 2 x 0.5 mm² |
Displays / operating elements
| Display |
| ||
| Necessary safeguarding | miniature fuse compliant with IEC60127-2 sheet 1; = 2 A; quick acting | ||
| Surrounding temperature value[°C] | -20...70 | ||
| Safety feature | IP 65 |
Monitoring range
| Detection range[mm] | 30...120 |
| Adjustable sensing range | yes |
| sensing range set at the factory[mm] | 120 |
| Actual sensing range Sr[mm] | 120 ± 10 % |
| Output feature | default closed |
| Max. voltage drop at switching output AC[V] | 11 |
| Minimum load current[mA] | 15 |
| Max. stray current[mA] | 6 |
| Continuous current rating of the switching output AC[mA] | 200; (250 (...50 °C)) |
| Momentary current capacity of switching output[mA] | 1500; (10 ms / 0,5 Hz) |
| AC switching frequency[Hz] | 3 |
| Short-circuit resistant | no |
| Overcurrent protection | no |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Hysteresis[% of Sr] | < 15 |
| Setting-point drift[% of Sr] | -15...15 |
