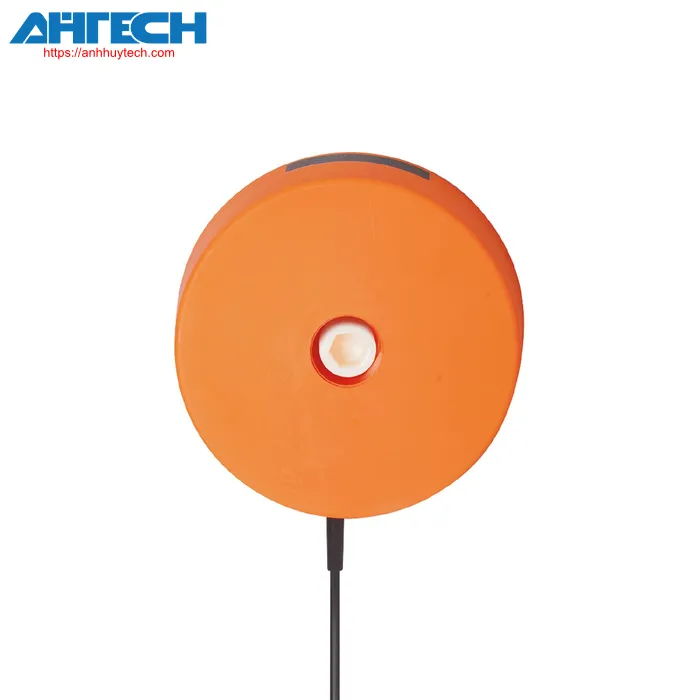

Inductive Sensor Ifm I27001
IFM CATEGORIES
Inductive Sensor I27001
Brand: Ifm
Product Code: SIY-3120-BPKG
- Extended sensing range of 120 mm
- Active base with a diameter of Ø 164 mm
- Suitable for use in the steel and metal sectors
- Simplified adjustment of the sensing range using a variable resistor
- DC model
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open |
| Detection range[mm] | 30...120 |
| Housing | cylindrical |
| measurements[mm] | Ø 164 / L = 63 |
| Voltage for operation[V] | 10...36 DC |
| Current draw[mA] | 15; (24 V) |
| Safety feature rating | II |
| Reverse polarity safeguard | yes |
| Weight[g] | 1242.5 |
| Housing | cylindrical |
| Installation | non-recessed mountable |
| measurements[mm] | Ø 164 / L = 63 |
| Substance | enclosure: PBT; base cover: aluminum |
| Connection | Cable: 2 m, PVC; 3 x 0.5 mm² |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | -20...70 | ||
| Safety feature | IP 65 |
Monitoring range
| Detection range[mm] | 30...120 |
| Adjustable sensing range | yes |
| sensing range set at the factory[mm] | 120 |
| Actual sensing range Sr[mm] | 120 ± 10 % |
| Electrical engineering design | PNP |
| Output feature | typically open |
| Max. voltage drop at switching output DC[V] | 2.5 |
| Continuous current rating of the switching output DC[mA] | 250 |
| DC switching frequency[Hz] | 3 |
| Overcurrent protection | yes |
| Method of overcurrent protection | yes (momentary) |
| Overcurrent protection | yes |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Hysteresis[% of Sr] | < 15 |
| Setting-point drift[% of Sr] | -15...15 |
Download Specification for I27001
