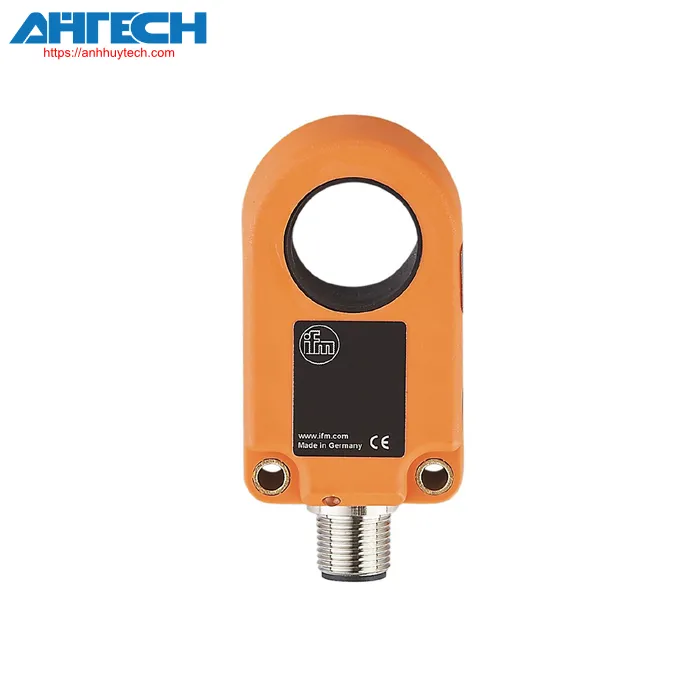

Inductive Sensor Ifm I7R209
IFM CATEGORIES
Inductive Sensor I7R209
Brand: Ifm
Product Code: I7R3020-FPKG/US-100-IPF
- Superior resolution
- Rapid response times
- Resistant to contaminants
- Fixed operating principle
- Elevated protection rating
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open / closed; (selectable) |
| Housing | circular |
| measurements[mm] | 60 x 35 x 20 |
| Operating principle | static |
| Connection | Connector: 1 x M12; coding: A |
Mechanical data
| Weight[g] | 58.4 | ||
| Housing | circular | ||
| measurements[mm] | 60 x 35 x 20 | ||
| Internal diameter[mm] | 20.1 | ||
| Substance | enclosure: PA; ring: POM | ||
| Display |
| ||
| Pulse elongation[ms] | 10...150 | ||
| Adjustable pulse elongation | yes | ||
| Max. descending time[ms] | 10 | ||
| Response duration[ms] | < 0.5 |
Outputs
| Electrical engineering design | PNP |
| Output feature | typically open / closed; (selectable) |
| Max. voltage drop at switching output DC[V] | 2 |
| Continuous current rating of the switching output DC[mA] | 200 |
| Overcurrent protection | yes |
| Overcurrent protection | yes |
| Voltage for operation[V] | 10...35 DC |
| Current draw[mA] | < 11 |
| Safety feature rating | III |
| Reverse polarity safeguard | yes |
| Definition of detail level of steel sphere (diameter)[mm] | 2.5 |
| Max. component velocity[m/s] | 35 |
| Surrounding temperature value[°C] | -25...70 |
| Safety feature | IP 67 |
Download Specification for I7R209
