Inductive Sensor Ifm IA5106
IFM CATEGORIES

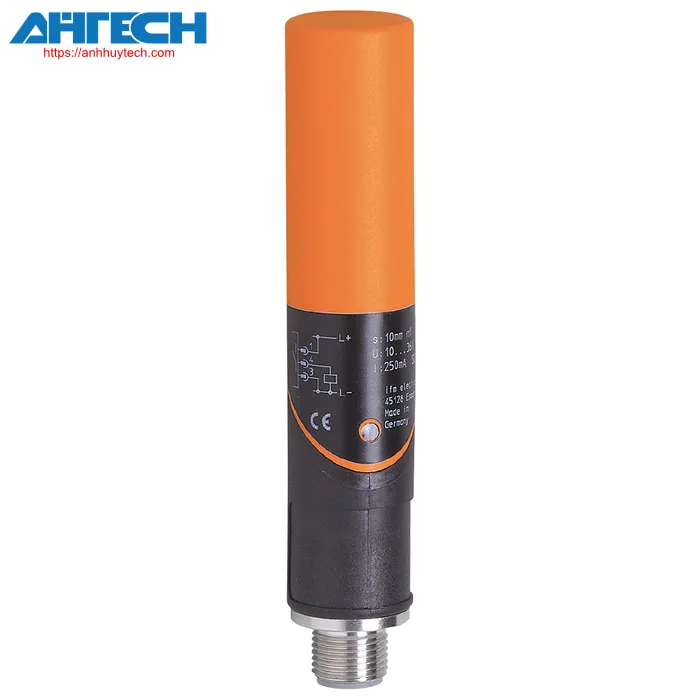

Inductive Sensor IA5106
Brand: Ifm
Product Code: IAE3010-BPKG/US-100-DPS
- Smooth plastic enclosure designed to safeguard against accumulation
- PBT enclosure resistant to a broad array of chemicals
- Featuring a connector that can be rotated to an angle of 90°
- Easily discernible indication of the switching status
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open |
| Detection range[mm] | 10 |
| Housing | cylindrical |
| measurements[mm] | Ø 20 / L = 94.5 |
| Voltage for operation[V] | 10...36 DC |
| Current draw[mA] | 15; (24 V) |
| Safety feature rating | III |
| Reverse polarity safeguard | yes |
| Weight[g] | 82.3 |
| Housing | cylindrical |
| Installation | non-recessed mountable |
| measurements[mm] | Ø 20 / L = 94.5 |
| Substance | PBT; LED window: PC |
| Connection | Connector: 1 x M12; coding: A |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | -25...80 | ||
| Safety feature | IP 65 |
Monitoring range
| Detection range[mm] | 10 |
| Actual sensing range Sr[mm] | 10 ± 10 % |
| Operational range[mm] | 0...8.1 |
| Electrical engineering design | PNP |
| Output feature | typically open |
| Max. voltage drop at switching output DC[V] | 2.5 |
| Continuous current rating of the switching output DC[mA] | 250 |
| DC switching frequency[Hz] | 300 |
| Overcurrent protection | yes |
| Method of overcurrent protection | yes (momentary) |
| Overcurrent protection | yes |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Hysteresis[% of Sr] | 3...15 |
| Setting-point drift[% of Sr] | -10...10 |
Download Specification for IA5106
