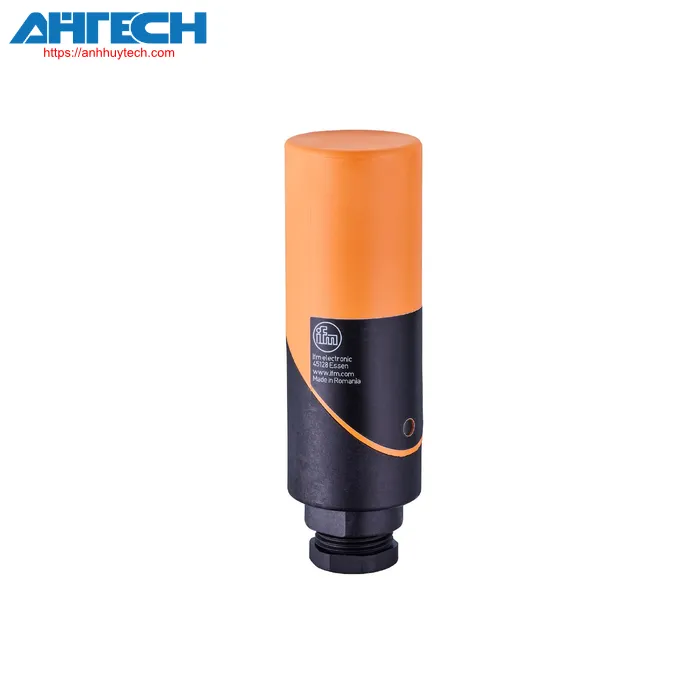

Inductive Sensor Ifm IB5133
IFM CATEGORIES
Inductive Sensor IB5133
Brand: Ifm
Product Code: IBE3030-FPKG
- Extensive sensing range
- Programmable output function typically open / default closed
- Featuring a terminal chamber that allows for a 90° rotation
- Smooth plastic enclosure designed to safeguard against accumulation
- PBT enclosure resistant to a broad array of chemicals
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open / closed; (selectable) |
| Detection range[mm] | 30 |
| Housing | cylindrical |
| measurements[mm] | Ø 34 / L = 98 |
| Voltage for operation[V] | 10...36 DC |
| Current draw[mA] | 15; (24 V) |
| Safety feature rating | II |
| Reverse polarity safeguard | yes |
| Weight[g] | 187 |
| Housing | cylindrical |
| Installation | non-recessed mountable |
| measurements[mm] | Ø 34 / L = 98 |
| Substance | PBT; end cap: PC |
| Connection | terminals: ...2.5 mm²; Cable jacket: Ø 7...13 mm; Cable connector: M20 × 1.5 |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | -25...80 | ||
| Safety feature | IP 65 |
Monitoring range
| Detection range[mm] | 30 |
| Actual sensing range Sr[mm] | 30 ± 10 % |
| Operational range[mm] | 0...24.3 |
| Electrical engineering design | PNP |
| Output feature | typically open / closed; (selectable) |
| Max. voltage drop at switching output DC[V] | 2.5 |
| Continuous current rating of the switching output DC[mA] | 200 |
| DC switching frequency[Hz] | 350 |
| Overcurrent protection | yes |
| Method of overcurrent protection | yes (momentary) |
| Overcurrent protection | yes |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3 |
| Setting-point drift[% of Sr] | -10...10 |
Download Specification for IB5133
