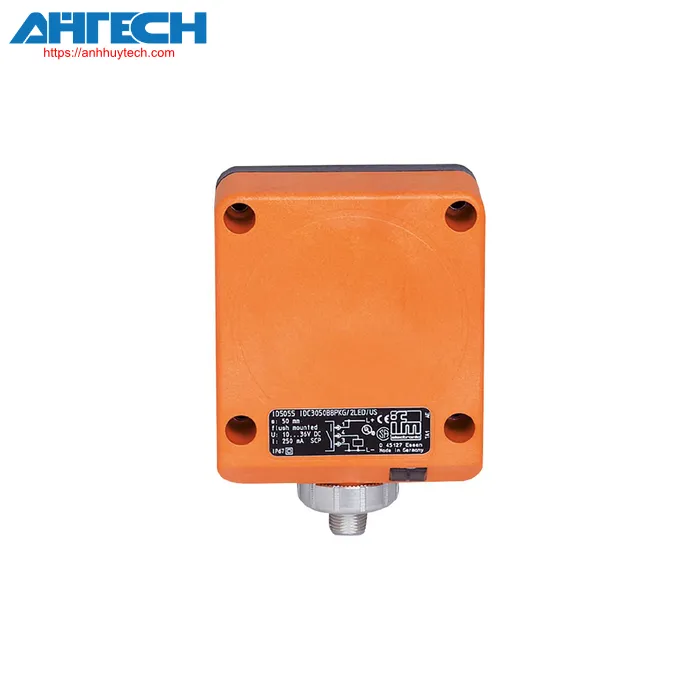

Inductive Sensor Ifm ID0039
IFM CATEGORIES
Inductive Sensor ID0039
Brand: Ifm
Product Code: IDC2050BARKA/LS-100AK
- Extensive sensing range
- Wide active sensing surface
- Featuring a combined AC/DC output and utilizing two-wire technology
- LED indicator for monitoring operation, switch status, and functionality
- Durable enclosure designed for operation in demanding industrial conditions
Contact via Zalo
Phone call
Product characteristics
| Output feature | typically open |
| Detection range[mm] | 50 |
| Housing | rectangular shape |
| measurements[mm] | 92 x 80 x 40 |
| AC frequency[Hz] | 47...63 |
| Voltage for operation[V] | 20...140 AC / 10...140 DC |
| Safety feature rating | I |
| Reverse polarity safeguard | yes |
| Weight[g] | 427 |
| Housing | rectangular shape |
| Installation | recessed installation compatible |
| measurements[mm] | 92 x 80 x 40 |
| Substance | PPE; die-cast zinc; brass with nickel plating |
| Connector: 1 x 1/2"; coding: C |
Displays / operating elements
| Display |
| ||||||
| Items provided |
| ||||||
| Surrounding temperature value[°C] | -25...70 | ||||||
| Safety feature | IP 67 |
Monitoring range
| Detection range[mm] | 50 |
| Operational range[mm] | 0...40.5; (mounted flush with mild steel (ST37)) |
| Output feature | typically open |
| Max. voltage drop at switching output DC[V] | 6 |
| Max. voltage drop at switching output AC[V] | 6 |
| Minimum load current[mA] | 5.5 |
| Max. stray current[mA] | 1.7 (140 V AC/DC) |
| Continuous current rating of the switching output AC[mA] | 450 |
| Continuous current rating of the switching output DC[mA] | 450 |
| Momentary current capacity of switching output[mA] | 2200; (20 ms / 0,5 Hz) |
| AC switching frequency[Hz] | 25 |
| DC switching frequency[Hz] | 25 |
| Overcurrent protection | yes |
| Method of overcurrent protection | yes (momentary) |
| Overcurrent protection | yes |
| Adjustment coefficient | steel: 1 / stainless steel: 0.85 / brass: 0.48 / aluminum: 0.46 / copper: 0.38 |
| Hysteresis[% of Sr] | 3...20 |
| Setting-point drift[% of Sr] | -15...15 |
Download Specification for ID0039
Download PDFRELATED PRODUCTS
