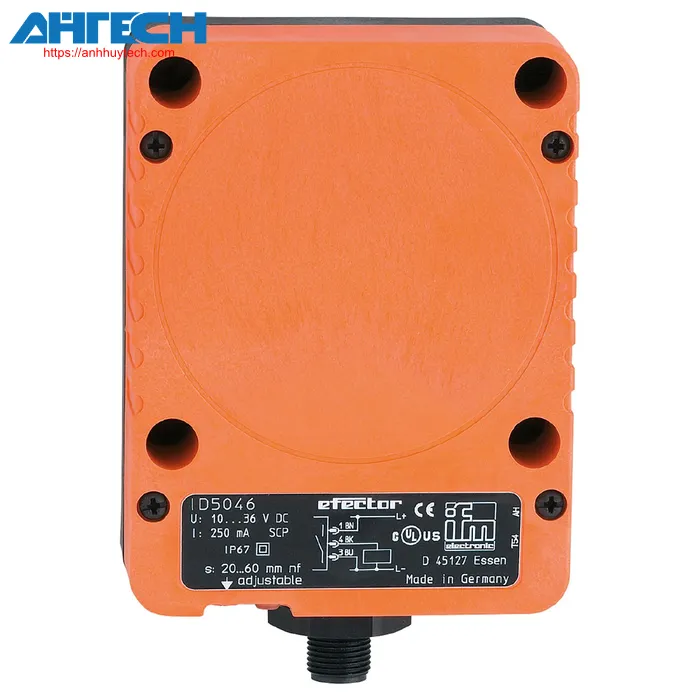

Inductive Sensor ID5046
Brand: Ifm
Product Code: IDE3060-FPKG/US-100-DPS
- Extensive sensing range
- Wide active sensing surface
- Simplified adjustment of the sensing range using a variable resistor
- Programmable output function typically open / default closed
- Durable enclosure designed for operation in demanding industrial conditions
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open / closed; (selectable) |
| Detection range[mm] | 20...60 |
| Housing | rectangular shape |
| measurements[mm] | 105 x 80 x 40 |
| Voltage for operation[V] | 10...36 DC |
| Current draw[mA] | < 15 |
| Safety feature rating | II |
| Reverse polarity safeguard | yes |
| Weight[g] | 440.5 |
| Housing | rectangular shape |
| Installation | non-recessed mountable |
| measurements[mm] | 105 x 80 x 40 |
| Substance | PPE |
| Connection | Connector: 1 x M12; coding: A |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | -25...80 | ||
| Safety feature | IP 67 |
Monitoring range
| Detection range[mm] | 20...60 |
| Adjustable sensing range | yes |
| sensing range set at the factory[mm] | 60 |
| Actual sensing range Sr[mm] | 60 ± 10 % |
| Operational range[mm] | 0...48.6 |
| Electrical engineering design | PNP |
| Output feature | typically open / closed; (selectable) |
| Max. voltage drop at switching output DC[V] | 2.5 |
| Continuous current rating of the switching output DC[mA] | 250 |
| DC switching frequency[Hz] | 100 |
| Overcurrent protection | yes |
| Method of overcurrent protection | yes (momentary) |
| Overcurrent protection | yes |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Hysteresis[% of Sr] | 1...15 |
| Setting-point drift[% of Sr] | -10...10 |
