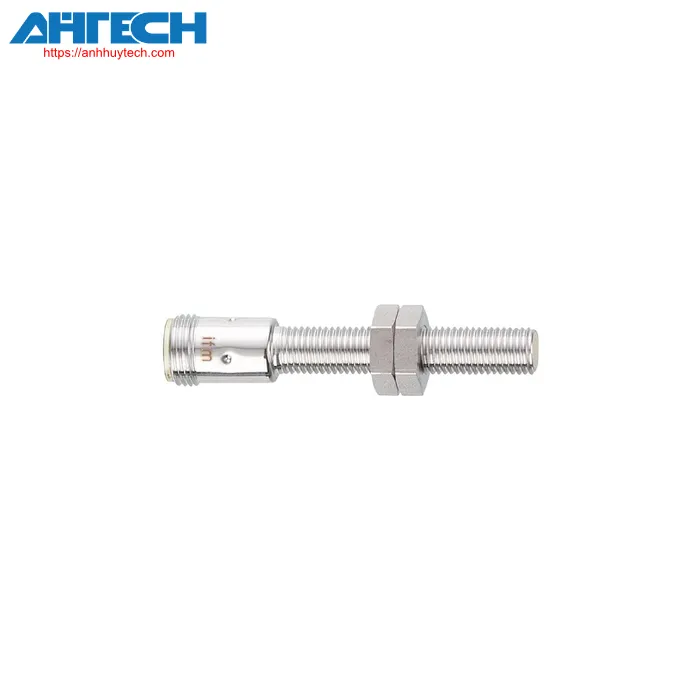

Inductive Sensor Ifm IE5215

IFM CATEGORIES

Brand: Ifm
Product Code: IEK3001-BPKG/V4A/US-104

Share on:

Description Download Accessories

Electrical engineering design	PNP
Output feature	typically open
Detection range[mm]	1
Housing	Screw-type
measurements[mm]	M8 x 1 / L = 60
System	gold-plated terminals
Connection	Connector: 1 x M12; coding: A; contacts: gold-plated

Weight[g]

23.5

Housing

Screw-type

Installation

recessed installation compatible

measurements[mm]

M8 x 1 / L = 60

Thread specification

M8 x 1

Substance

stainless steel (1.4404 / 316L); sensing surface: white LCP; LED lens: PEI; locking nuts: stainless steel (1.4404 / 316L)

Fastening torque[Nm]

A = 5 mm: 2 Nm; B: 5 Nm

All-metal enclosure

Items provided

lock nuts: 2

Adjustment coefficient

steel: 1 / stainless steel: 0.7 / brass: 0.3 / aluminum: 0.3 / copper: 0.1

Hysteresis[% of Sr]

1...20

Setting-point drift[% of Sr]

-10...10

Electrical engineering design	PNP
Output feature	typically open
Max. voltage drop at switching output DC[V]	2.5
Continuous current rating of the switching output DC[mA]	100
DC switching frequency[Hz]	2000
Overcurrent protection	yes
Overcurrent protection	yes
Voltage for operation[V]	10...30 DC
Current draw[mA]	< 10
Safety feature rating	III
Reverse polarity safeguard	yes
Detection range[mm]	1
Actual sensing range Sr[mm]	1 ± 10 %
Operational range[mm]	0...0.81
Extended sensing range	no
Surrounding temperature value[°C]	-25...80
Safety feature	IP 67
