Inductive Sensor Ifm IE5358
IFM CATEGORIES

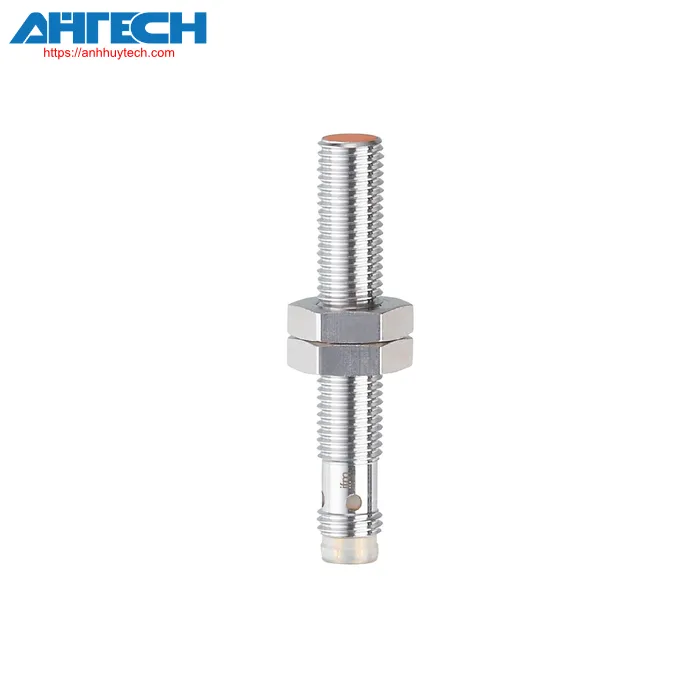

Inductive Sensor IE5358
Brand: Ifm
Product Code: IEB3002BAPKG/AS
- Suitable for applications with limited space
- Compact M8 connector
- Extremely high switching frequency
- Easily discernible indication of the switching status
- Durable metal enclosure designed for harsh industrial conditions
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | default closed |
| Detection range[mm] | 2 |
| Housing | Screw-type |
| measurements[mm] | M8 x 1 / L = 50 |
| System | Extended sensing range |
Mechanical data
| Weight[g] | 18.7 | ||
| Housing | Screw-type | ||
| Installation | recessed installation compatible | ||
| measurements[mm] | M8 x 1 / L = 50 | ||
| Thread specification | M8 x 1 | ||
| Substance | brass white bronze plated; sensing surface: orange PBT; LED lens: PPSU; locknuts: brass white bronze plated | ||
| Fastening torque[Nm] | A = 5 mm: 1,5 Nm; B = 2 Nm | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 | ||
| Hysteresis[% of Sr] | 1...20 | ||
| Setting-point drift[% of Sr] | -10...10 |
Outputs
| Electrical engineering design | PNP | |
| Output feature | default closed | |
| Max. voltage drop at switching output DC[V] | 2.5 | |
| Continuous current rating of the switching output DC[mA] | 200 | |
| DC switching frequency[Hz] | 1300 | |
| Overcurrent protection | yes | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...30 DC | |
| Current draw[mA] | < 10 | |
| Safety feature rating | III | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 2 | |
| Actual sensing range Sr[mm] | 2 ± 10 % | |
| Operational range[mm] | 0...1.62 | |
| Extended sensing range | yes | |
| Surrounding temperature value[°C] | -10...50 | |
| Safety feature | IP 65; IP 67; (with ifm socket duly screwed on) | |
| Items provided |
|
Download Specification for IE5358
