Inductive Sensor Ifm IE5362
IFM CATEGORIES

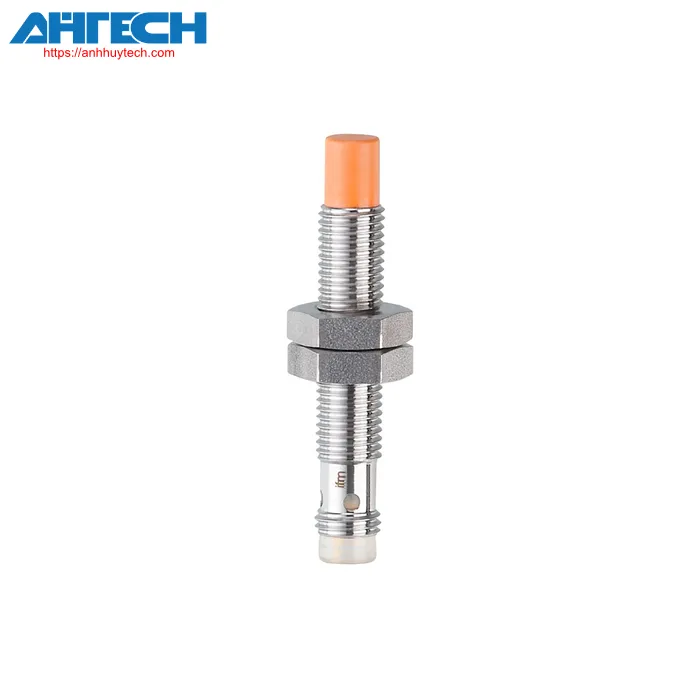

Inductive Sensor IE5362
Brand: Ifm
Product Code: IEB3004-BPKG/V4A/AS
- Suitable for applications with limited space
- Compact M8 connector
- Impervious to oils and coolants
- Easily discernible indication of the switching status
- Sturdy enclosure designed for applications in metalworking
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open |
| Detection range[mm] | 4 |
| Housing | Screw-type |
| measurements[mm] | M8 x 1 / L = 50 |
| System | Extended sensing range |
Mechanical data
| Weight[g] | 17.8 | ||
| Housing | Screw-type | ||
| Installation | non-recessed mountable | ||
| measurements[mm] | M8 x 1 / L = 50 | ||
| Thread specification | M8 x 1 | ||
| Substance | stainless steel (1.4404 / 316L); enclosure: LCP; LED lens: PPSU; potting: oil resistant; locking nut: stainless steel (1.4404 / 316L) | ||
| Fastening torque[Nm] | A = 5 mm: 2 Nm; B = 5 Nm | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.5 / copper: 0.4 | ||
| Hysteresis[% of Sr] | 1...20 | ||
| Setting-point drift[% of Sr] | -10...10 |
Outputs
| Electrical engineering design | PNP | |
| Output feature | typically open | |
| Max. voltage drop at switching output DC[V] | 2.5 | |
| Continuous current rating of the switching output DC[mA] | 100 | |
| DC switching frequency[Hz] | 800 | |
| Overcurrent protection | yes | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...30 DC | |
| Current draw[mA] | < 10 | |
| Safety feature rating | III | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 4 | |
| Actual sensing range Sr[mm] | 4 ± 10 % | |
| Operational range[mm] | 0...3.24 | |
| Extended sensing range | yes | |
| Surrounding temperature value[°C] | -10...70 | |
| Safety feature | IP 65; IP 67; (with ifm socket duly screwed on) | |
| Items provided |
|
Download Specification for IE5362
