Inductive Sensor Ifm IF5723
IFM CATEGORIES

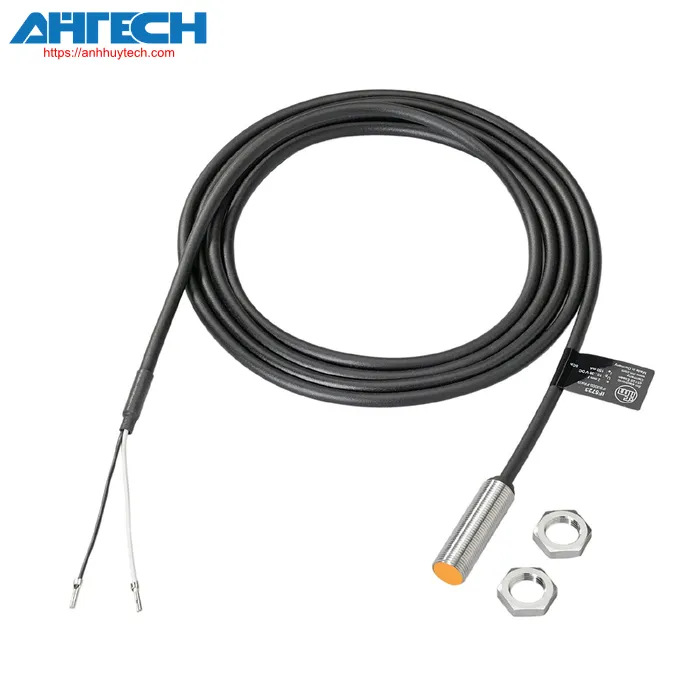

Inductive Sensor IF5723
Brand: Ifm
Product Code: IFB2002-FRKG/PH
- Compact housing design
- Suitable for applications with limited space
- Extremely high switching frequency
- Programmable output function typically open / default closed
- Durable metal enclosure designed for harsh industrial conditions
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP/NPN |
| Output feature | typically open / closed; (selectable) |
| Detection range[mm] | 2 |
| Housing | Screw-type |
| measurements[mm] | M12 x 1 / L = 40 |
| Voltage for operation[V] | 10...36 DC |
| Safety feature rating | III |
| Reverse polarity safeguard | yes |
| Weight[g] | 84.5 |
| Housing | Screw-type |
| Installation | recessed installation compatible |
| measurements[mm] | M12 x 1 / L = 40 |
| Thread specification | M12 x 1 |
| Substance | brass finished with nickel plating; PC |
| Connection | Cable: 2 m, PUR / PVC; 2 x 0.34 mm² |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | -25...80 | ||
| Safety feature | IP 67 |
Monitoring range
| Detection range[mm] | 2 |
| Actual sensing range Sr[mm] | 2 ± 10 % |
| Operational range[mm] | 0...1.6 |
| Electrical engineering design | PNP/NPN |
| Output feature | typically open / closed; (selectable) |
| Max. voltage drop at switching output DC[V] | 4.6 |
| Minimum load current[mA] | 4 |
| Max. stray current[mA] | 0.5 |
| Continuous current rating of the switching output DC[mA] | 150 |
| DC switching frequency[Hz] | 1200 |
| Overcurrent protection | yes |
| Method of overcurrent protection | yes (momentary) |
| Overcurrent protection | yes |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Hysteresis[% of Sr] | 1...15 |
| Setting-point drift[% of Sr] | -10...10 |
Download Specification for IF5723
