Inductive Sensor Ifm IF5851
IFM CATEGORIES

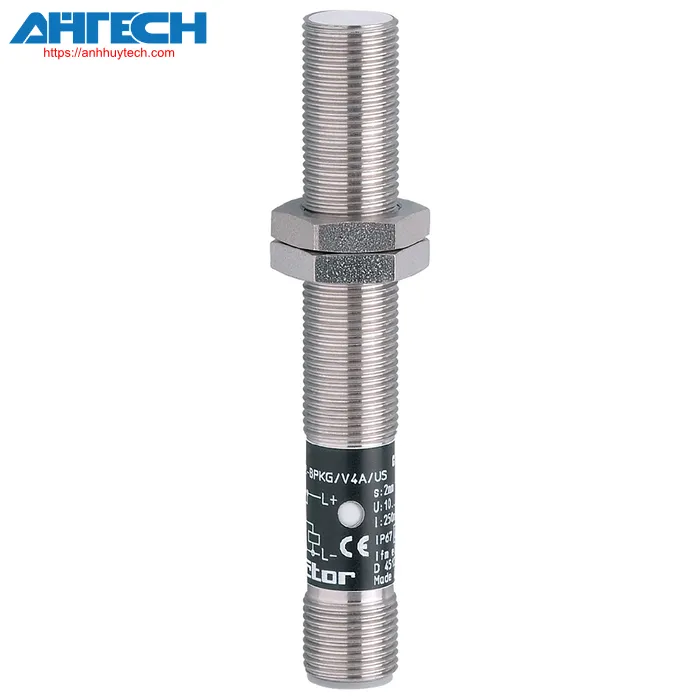

Inductive Sensor IF5851
Brand: Ifm
Product Code: IFA3002-BPKG/V4A/US-100-DPS
- Broad operating temperature value spectrum
- Durable stainless steel enclosure designed for applications in the food and drink sector
- Extremely high switching frequency
- Elevated protection rating to meet the demands of challenging industrial conditions
- For accurate position sensing on machinery
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open |
| Detection range[mm] | 2 |
| Housing | Screw-type |
| measurements[mm] | M12 x 1 / L = 83 |
| System | gold-plated terminals |
| Application | Industrial uses |
Mechanical data
| Weight[g] | 33 | ||
| Housing | Screw-type | ||
| Installation | recessed installation compatible | ||
| measurements[mm] | M12 x 1 / L = 83 | ||
| Thread specification | M12 x 1 | ||
| Substance | stainless steel (1.4571/316Ti); sensing surface: uncolored PBT | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 | ||
| Hysteresis[% of Sr] | 1...15 | ||
| Setting-point drift[% of Sr] | -10...10 |
Outputs
| Electrical engineering design | PNP | |
| Output feature | typically open | |
| Max. voltage drop at switching output DC[V] | 2.5 | |
| Continuous current rating of the switching output DC[mA] | 250 | |
| DC switching frequency[Hz] | 800 | |
| Overcurrent protection | yes | |
| Method of overcurrent protection | yes (momentary) | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...36 DC | |
| Current draw[mA] | 15; (24 V) | |
| Safety feature rating | II | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 2 | |
| Actual sensing range Sr[mm] | 2 ± 10 % | |
| Operational range[mm] | 0...1.6 | |
| Surrounding temperature value[°C] | -25...80 | |
| Safety feature | IP 67 | |
| Items provided |
|
Download Specification for IF5851
