Inductive Sensor Ifm IF5939
IFM CATEGORIES

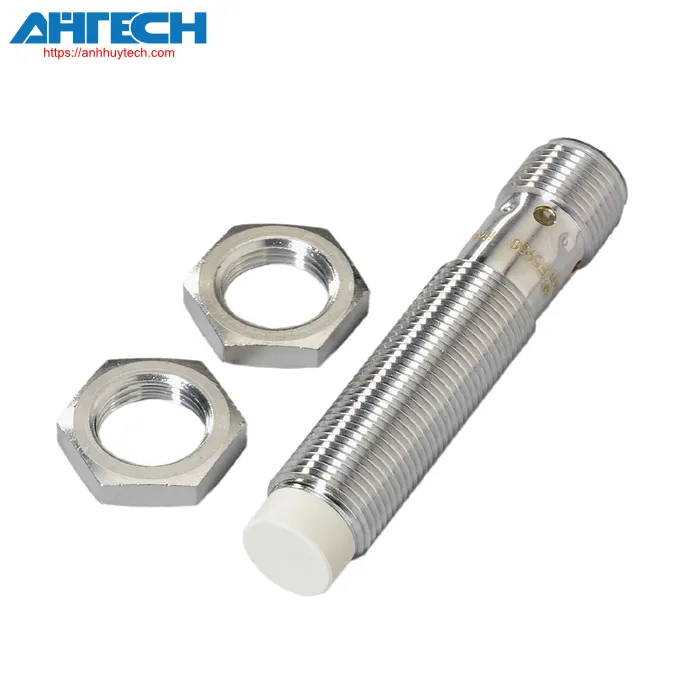

Inductive Sensor IF5939
Brand: Ifm
Product Code: IFK3007-ANKG/US-104-DNS
- Durable metal enclosure designed for harsh industrial conditions
- Incorporating optical mounting and adjustment assistance
- Extended sensing range reduces physical wear and tear
- For accurate position sensing on machinery
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | NPN |
| Output feature | typically open |
| Detection range[mm] | 7 |
| Housing | Screw-type |
| measurements[mm] | M12 x 1 / L = 60 |
| System | Extended sensing range |
Mechanical data
| Weight[g] | 27.3 | ||
| Housing | Screw-type | ||
| Installation | non-recessed mountable | ||
| measurements[mm] | M12 x 1 / L = 60 | ||
| Thread specification | M12 x 1 | ||
| Substance | brass white bronze plated; PES | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 | ||
| Hysteresis[% of Sr] | 1...15 | ||
| Setting-point drift[% of Sr] | -10...10 |
Outputs
| Electrical engineering design | NPN | |
| Output feature | typically open | |
| Max. voltage drop at switching output DC[V] | 2.5 | |
| Continuous current rating of the switching output DC[mA] | 250 | |
| DC switching frequency[Hz] | 800 | |
| Overcurrent protection | yes | |
| Method of overcurrent protection | yes (momentary) | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...36 DC | |
| Current draw[mA] | 15; (24 V) | |
| Safety feature rating | II | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 7 | |
| Actual sensing range Sr[mm] | 7 ± 10 % | |
| Operational range[mm] | 0...5.7 | |
| Extended sensing range | yes | |
| Surrounding temperature value[°C] | -25...70 | |
| Safety feature | IP 67 | |
| Items provided |
|
Download Specification for IF5939
