Inductive Sensor Ifm IF6012
IFM CATEGORIES

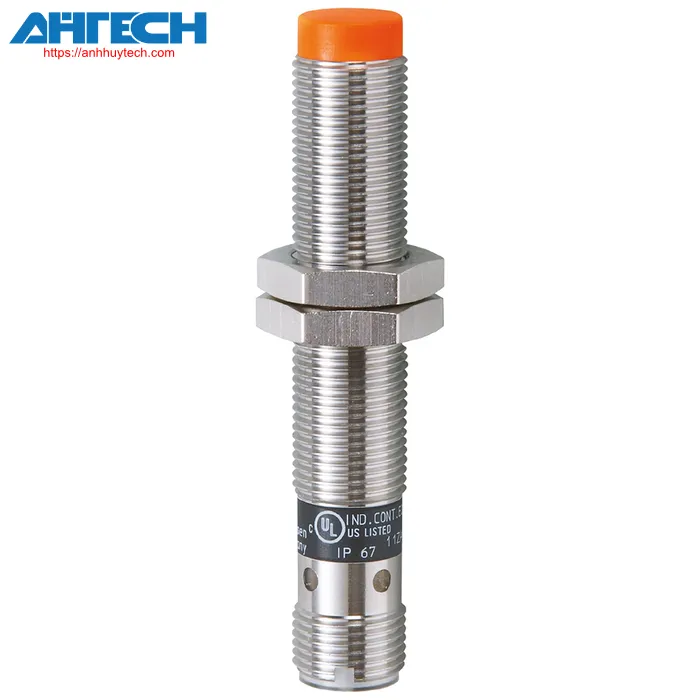

Inductive Sensor IF6012
Brand: Ifm
Product Code: IFA4004-CNKG/US-104-DNA
- Durable metal enclosure designed for harsh industrial conditions
- Broad operating temperature value spectrum
- Extremely high switching frequency
- Easily discernible indication of the switching status
- For accurate position sensing on machinery
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | NPN |
| Output feature | supplementary |
| Detection range[mm] | 4 |
| Housing | Screw-type |
| measurements[mm] | M12 x 1 / L = 70 |
| Voltage for operation[V] | 10...36 DC |
| Current draw[mA] | 15; (24 V) |
| Safety feature rating | II |
| Reverse polarity safeguard | yes |
| Weight[g] | 29.5 |
| Housing | Screw-type |
| Installation | non-recessed mountable |
| measurements[mm] | M12 x 1 / L = 70 |
| Thread specification | M12 x 1 |
| Substance | brass white bronze plated; PC |
| Connection | Connector: 1 x M12; coding: A |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | -25...80 | ||
| Safety feature | IP 67 |
Monitoring range
| Detection range[mm] | 4 |
| Actual sensing range Sr[mm] | 4 ± 10 % |
| Operational range[mm] | 0...3.25 |
| Electrical engineering design | NPN |
| Output feature | supplementary |
| Max. voltage drop at switching output DC[V] | 2.5 |
| Continuous current rating of the switching output DC[mA] | 200 |
| DC switching frequency[Hz] | 1200 |
| Overcurrent protection | yes |
| Method of overcurrent protection | yes (momentary) |
| Overcurrent protection | yes |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Hysteresis[% of Sr] | 3...15 |
| Setting-point drift[% of Sr] | -10...10 |
Download Specification for IF6012
