Inductive Sensor Ifm IF9920
IFM CATEGORIES

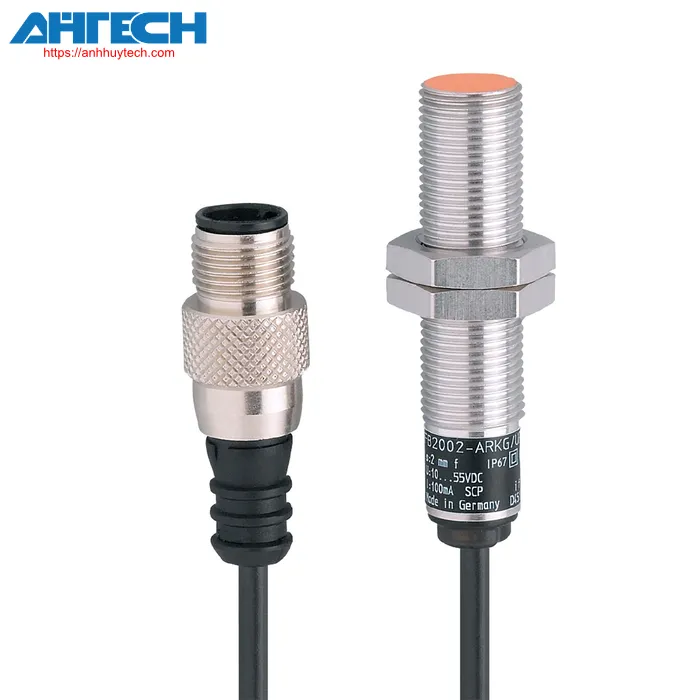

Inductive Sensor IF9920
Brand: Ifm
Product Code: IFB2002-ARKG/UP/0,8M/US RT
- Durable metal enclosure designed for harsh industrial conditions
- Extremely high switching frequency
- Broad operating temperature value spectrum
- Two-conductor technology
- Equipped with a short cable and an M12 connector
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP/NPN |
| Output feature | typically open |
| Detection range[mm] | 2 |
| Housing | Screw-type |
| measurements[mm] | M12 x 1 / L = 54 |
| Voltage for operation[V] | 10...55 DC |
| Safety feature rating | II |
| Reverse polarity safeguard | yes |
| Weight[g] | 53 |
| Housing | Screw-type |
| Installation | recessed installation compatible |
| measurements[mm] | M12 x 1 / L = 54 |
| Thread specification | M12 x 1 |
| Substance | brass with nickel plating; PBT |
| Cable: 0.8 m, PUR | |
| Connector: 1 x M12; coding: A |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | -25...80 | ||
| Safety feature | IP 67 |
Monitoring range
| Detection range[mm] | 2 | |
| Actual sensing range Sr[mm] | 2 ± 10 % | |
| Operational range[mm] | 0...1.6 | |
| Electrical engineering design | PNP/NPN | |
| Output feature | typically open | |
| Max. voltage drop at switching output DC[V] | 4.6 | |
| Minimum load current[mA] | 2 | |
| Max. stray current[mA] | 0.6 | |
| Continuous current rating of the switching output DC[mA] | 100 | |
| DC switching frequency[Hz] | 800 | |
| Observations regarding switching frequency[Hz] |
| |
| Overcurrent protection | yes | |
| Method of overcurrent protection | yes (momentary) | |
| Overcurrent protection | yes | |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 | |
| Hysteresis[% of Sr] | 1...15 | |
| Setting-point drift[% of Sr] | -10...10 |
Download Specification for IF9920
