Inductive Sensor Ifm IFC259
IFM CATEGORIES

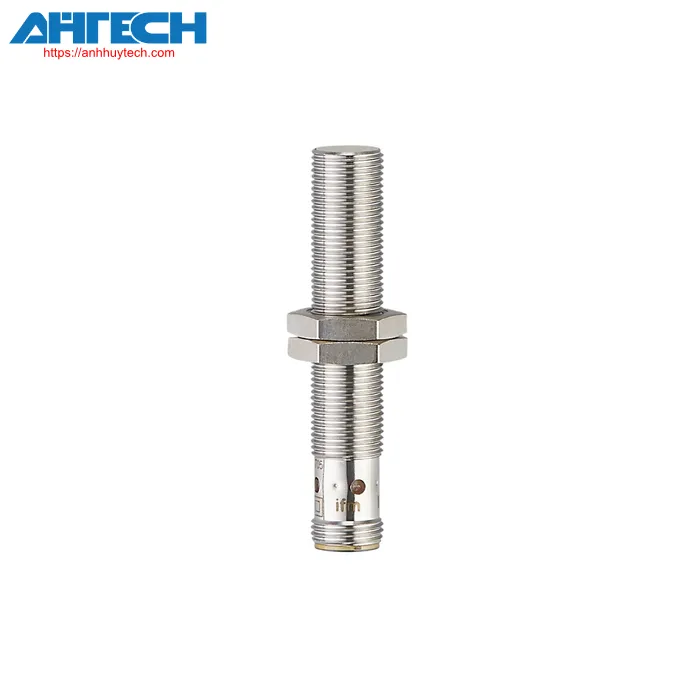

Inductive Sensor IFC259
Brand: Ifm
Product Code: IFK3003BBPKG/K1/V4A/US-104
- Adjustment coefficient K=1: Uniform sensing range across all metals
- Extremely high switching frequency
- Elevated protection rating to meet the demands of challenging industrial conditions
- Appropriate for industrial, mobile, cooling, and lubrication applications
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open |
| Detection range[mm] | 3 |
| Housing | Screw-type |
| measurements[mm] | M12 x 1 / L = 65 |
| System | gold-plated terminals; correction factor = 1; immune to magnetic fields |
| Application | Lubricants and cooling fluids |
| Immune to magnetic fields | yes |
| Max. immunity to electromagnetic interference[mT] | 300 |
Mechanical data
| Weight[g] | 28.7 | ||
| Housing | Screw-type | ||
| Installation | recessed installation compatible | ||
| measurements[mm] | M12 x 1 / L = 65 | ||
| Thread specification | M12 x 1 | ||
| Substance | enclosure: stainless steel (1.4404 / 316L); sensing surface: white LCP; LED lens: PEI; locking nuts: brass with a white bronze finish | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 1 / brass: 1 / aluminum: 1 / copper: 1 | ||
| Hysteresis[% of Sr] | 3...15 | ||
| Setting-point drift[% of Sr] | -10...10 | ||
| Adjustment coefficient = 1 | yes |
Outputs
| Electrical engineering design | PNP | |
| Output feature | typically open | |
| Max. voltage drop at switching output DC[V] | 2.5 | |
| Continuous current rating of the switching output DC[mA] | 100 | |
| DC switching frequency[Hz] | 2000 | |
| Overcurrent protection | yes | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...30 DC | |
| Current draw[mA] | < 20 | |
| Safety feature rating | II | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 3 | |
| Actual sensing range Sr[mm] | 3 ± 10 % | |
| Operational range[mm] | 0...2.4 | |
| Surrounding temperature value[°C] | -25...70 | |
| Safety feature | IP 68; ("Coolant") | |
| Items provided |
|
Download Specification for IFC259
