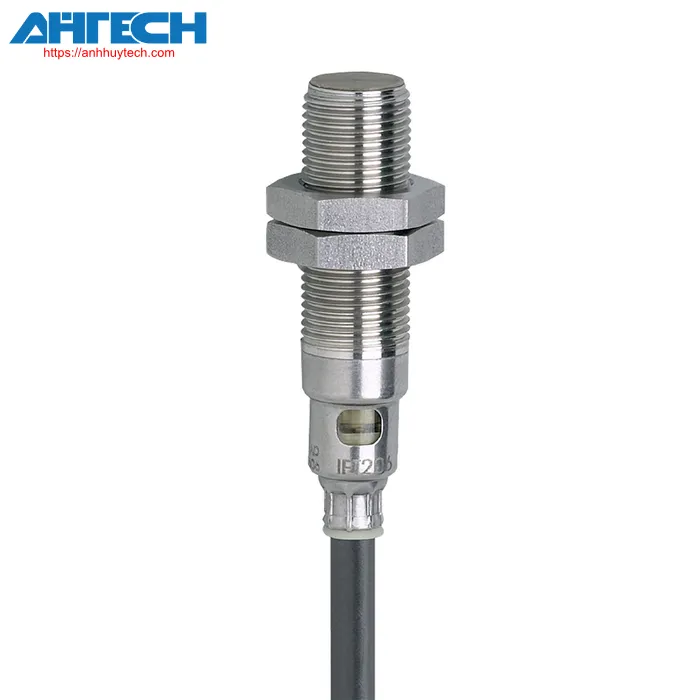

Inductive Sensor Ifm IFT206
IFM CATEGORIES
Inductive Sensor IFT206
Brand: Ifm
Product Code: IFB3004BBPKG/M/V4A/6M/WH
- Broad operating temperature value spectrum
- Temperature shock resistant even in case of frequent temperature value fluctuations
- Durable stainless steel enclosure designed for applications in the food and drink sector
- Durable against high-force per unit area washing using harsh cleaning chemicals
- Elevated protection rating to meet the demands of challenging industrial conditions
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open |
| Detection range[mm] | 4 |
| Housing | Screw-type |
| measurements[mm] | M12 x 1 / L = 50 |
| System | Extended sensing range |
| Application | norm cleaning procedures |
Mechanical data
| Weight[g] | 250.5 | ||
| Housing | Screw-type | ||
| Installation | recessed installation compatible | ||
| measurements[mm] | M12 x 1 / L = 50 | ||
| Thread specification | M12 x 1 | ||
| Substance | stainless steel (1.4404 / 316L); sensing surface: PEEK | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 | ||
| Hysteresis[% of Sr] | 1...20 |
Outputs
| Electrical engineering design | PNP | |
| Output feature | typically open | |
| Max. voltage drop at switching output DC[V] | 2.5 | |
| Continuous current rating of the switching output DC[mA] | 100 | |
| DC switching frequency[Hz] | 800 | |
| Overcurrent protection | yes | |
| Method of overcurrent protection | yes (momentary) | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...36 DC | |
| Current draw[mA] | 10; (24 V) | |
| Safety feature rating | II | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 4 | |
| Operational range[mm] | 0...3.25 | |
| Extended sensing range | yes | |
| Surrounding temperature value[°C] | 0...100 | |
| Safety feature | IP 68; IP 69K; ("COP") | |
| Items provided |
|
Download Specification for IFT206
