Inductive Sensor Ifm IG0344
IFM CATEGORIES

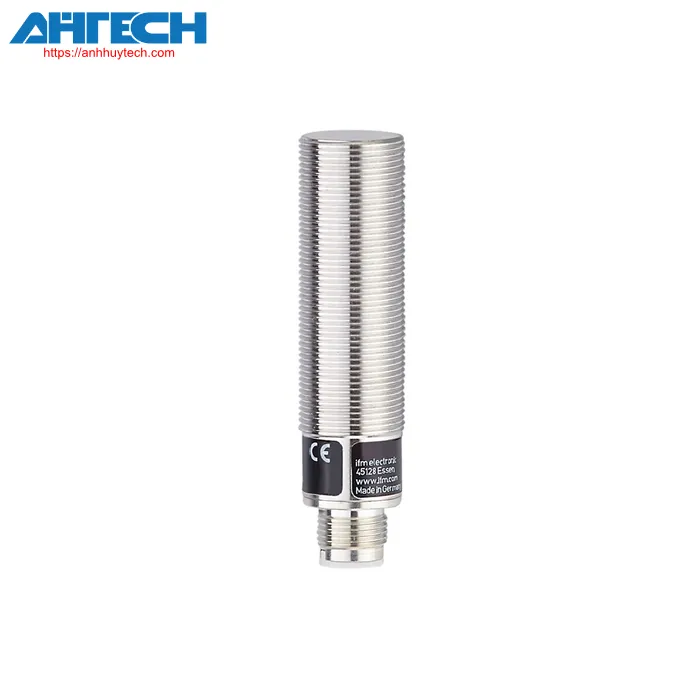

Inductive Sensor IG0344
Brand: Ifm
Product Code: IGK2008BABOA/SL/LS100-AK RT
- Featuring a combined AC/DC output and utilizing two-wire technology
- Extended sensing range reduces physical wear and tear
- Broad operating temperature value spectrum
- Durable metal enclosure designed for harsh industrial conditions
- Featuring a durable 1/2" connector
Contact via Zalo
Phone call
Product characteristics
| Output feature | typically open | |
| Detection range[mm] | 8 | |
| Housing | Screw-type | |
| measurements[mm] | M18 x 1 | |
| System | Extended sensing range | |
| Items provided |
|
Mechanical data
| Weight[g] | 65.2 | ||
| Housing | Screw-type | ||
| Installation | recessed installation compatible | ||
| measurements[mm] | M18 x 1 | ||
| Thread specification | M18 x 1 | ||
| Substance | brass white bronze plated; PA; PBT | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.45 / aluminum: 0.4 / copper: 0.33 | ||
| Hysteresis[% of Sr] | 3...15 |
Outputs
| Output feature | typically open |
| Max. voltage drop at switching output DC[V] | 6 |
| Max. voltage drop at switching output AC[V] | 6.5 |
| Minimum load current[mA] | 5 |
| Max. stray current[mA] | 1 (250 V AC) / 0.8 (140 V AC) / 0.8 (24 V DC) |
| Continuous current rating of the switching output AC[mA] | 250; (350 (...50 °C)) |
| Continuous current rating of the switching output DC[mA] | 100 |
| Momentary current capacity of switching output[mA] | 2200; (20 ms / 0,5 Hz) |
| AC switching frequency[Hz] | 25 |
| DC switching frequency[Hz] | 60 |
| Short-circuit resistant | no |
| Overcurrent protection | no |
| Voltage for operation[V] | 20...250 AC/DC |
| Safety feature rating | I |
| Reverse polarity safeguard | no |
| Detection range[mm] | 8 |
| Operational range[mm] | 0...6.5 |
| Extended sensing range | yes |
| Surrounding temperature value[°C] | -25...70 |
| Safety feature | IP 67 |
| Necessary safeguarding | miniature fuse compliant with IEC60127-2 sheet 1; = 2 A; quick acting |
Download Specification for IG0344
