Inductive Sensor Ifm IG5792
IFM CATEGORIES

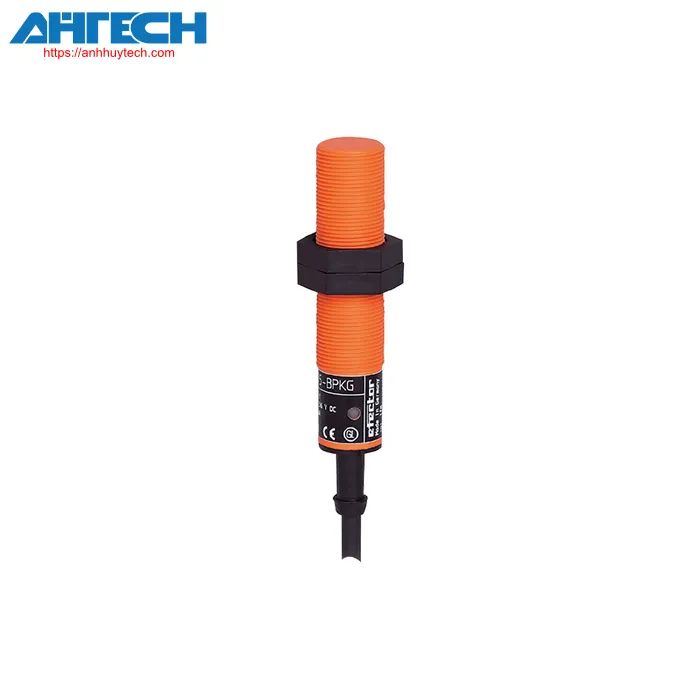

Inductive Sensor IG5792
Brand: Ifm
Product Code: IG-4005ZCPKG/6M/SH
- Supplementary output functionality NO/NC
- Elevated protection rating to meet the demands of challenging industrial conditions
- Extremely high switching frequency
- Broad operating temperature value spectrum
- Equipped with a long silicone cable suitable for high-temperature value usages
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | supplementary |
| Detection range[mm] | 5 |
| Housing | Screw-type |
| measurements[mm] | M18 x 1 / L = 80 |
| Voltage for operation[V] | 10...36 DC |
| Current draw[mA] | 10; (24 V) |
| Safety feature rating | II |
| Reverse polarity safeguard | yes |
| Weight[g] | 324 |
| Housing | Screw-type |
| Installation | recessed installation compatible |
| measurements[mm] | M18 x 1 / L = 80 |
| Thread specification | M18 x 1 |
| Substance | PBT |
| Connection | Cable: 6 m, silicone; 4 x 0.34 mm² |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | -25...100 | ||
| Safety feature | IP 67 |
Monitoring range
| Detection range[mm] | 5 |
| Actual sensing range Sr[mm] | 5 ± 10 % |
| Operational range[mm] | 0...4.05 |
| Electrical engineering design | PNP |
| Output feature | supplementary |
| Max. voltage drop at switching output DC[V] | 2.5 |
| Max. stray current[mA] | 0.1 |
| Continuous current rating of the switching output DC[mA] | 100 |
| DC switching frequency[Hz] | 720 |
| Overcurrent protection | yes |
| Method of overcurrent protection | yes (momentary) |
| Overcurrent protection | yes |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3 |
| Hysteresis[% of Sr] | 3...15 |
| Setting-point drift[% of Sr] | -10...10 |
Download Specification for IG5792
