Inductive Sensor Ifm IG5842
IFM CATEGORIES

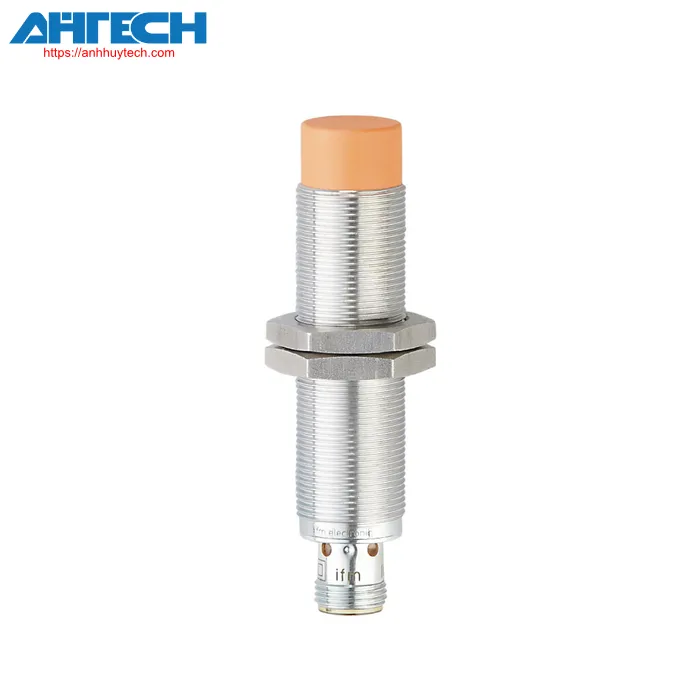

Inductive Sensor IG5842
Brand: Ifm
Product Code: IGA4008-CPKG/US-104
- Supplementary output functionality NO/NC
- Durable metal enclosure designed for harsh industrial conditions
- Broad operating temperature value spectrum
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | supplementary |
| Detection range[mm] | 8 |
| Housing | Screw-type |
| measurements[mm] | M18 x 1 / L = 80 |
| Voltage for operation[V] | 10...30 DC |
| Current draw[mA] | < 10 |
| Safety feature rating | II |
| Reverse polarity safeguard | yes |
| Weight[g] | 70.5 |
| Housing | Screw-type |
| Installation | non-recessed mountable |
| measurements[mm] | M18 x 1 / L = 80 |
| Thread specification | M18 x 1 |
| Substance | brass white bronze plated; sensing surface: orange PBT; LED lens: PEI; locknuts: brass white bronze plated |
| Connection | Connector: 1 x M12; coding: A |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | -25...80 | ||
| Safety feature | IP 65 |
Monitoring range
| Detection range[mm] | 8 |
| Actual sensing range Sr[mm] | 8 ± 10 % |
| Operational range[mm] | 0...6.48 |
| Electrical engineering design | PNP |
| Output feature | supplementary |
| Max. voltage drop at switching output DC[V] | 2.5 |
| Continuous current rating of the switching output DC[mA] | 200 |
| DC switching frequency[Hz] | 300 |
| Overcurrent protection | yes |
| Overcurrent protection | yes |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Hysteresis[% of Sr] | 3...15 |
| Setting-point drift[% of Sr] | -10...10 |
Download Specification for IG5842
