Inductive Sensor Ifm IG5899
IFM CATEGORIES

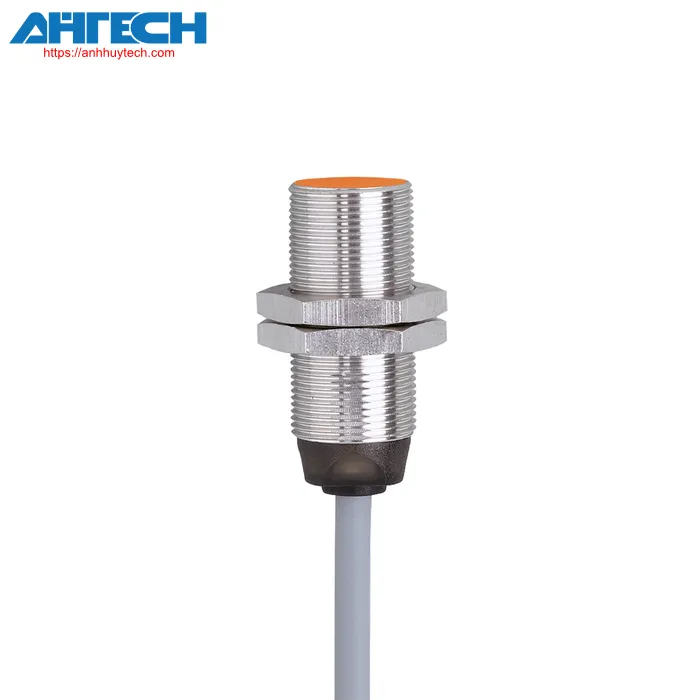

Inductive Sensor IG5899
Brand: Ifm
Product Code: IGB2008BBROG/UP/6M/PH
- Durable metal enclosure designed for harsh industrial conditions
- Two-conductor technology
- Equipped with an extended cable
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP/NPN |
| Output feature | default closed |
| Detection range[mm] | 8 |
| Housing | Screw-type |
| measurements[mm] | M18 x 1 / L = 43 |
| Voltage for operation[V] | 10...36 DC |
| Safety feature rating | II |
| Reverse polarity safeguard | no |
| Weight[g] | 303 |
| Housing | Screw-type |
| Installation | recessed installation compatible |
| measurements[mm] | M18 x 1 / L = 43 |
| Thread specification | M18 x 1 |
| Substance | brass white bronze plated; PC |
| Connection | Cable: 6 m, PUR / PVC; 2 x 0.34 mm² |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | -25...70 | ||
| Safety feature | IP 67 |
Monitoring range
| Detection range[mm] | 8 |
| Electrical engineering design | PNP/NPN |
| Output feature | default closed |
| Max. voltage drop at switching output DC[V] | 5 |
| Minimum load current[mA] | 5 |
| Max. stray current[mA] | 1 |
| Continuous current rating of the switching output DC[mA] | 100 |
| DC switching frequency[Hz] | 100 |
| Overcurrent protection | no |
| Overcurrent protection | no |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3 |
Download Specification for IG5899
