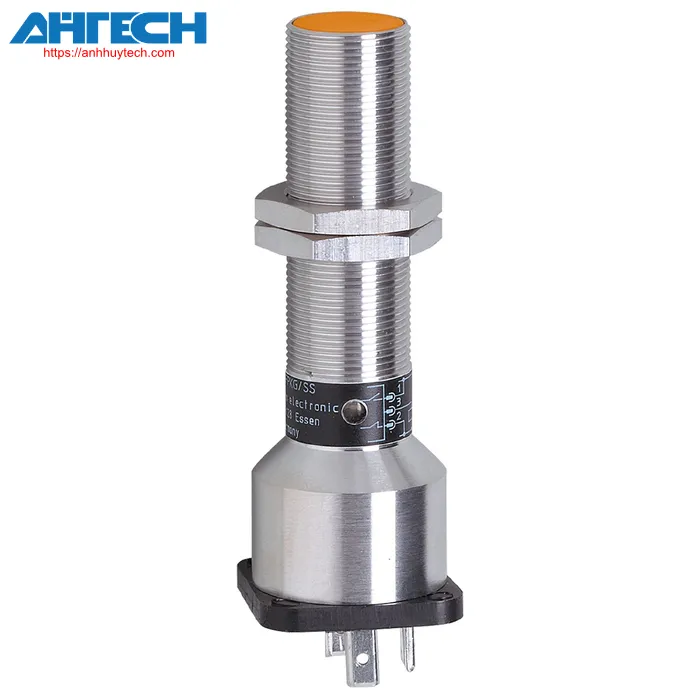

Inductive Sensor Ifm IG5910
IFM CATEGORIES
Inductive Sensor IG5910
Brand: Ifm
Product Code: IGA3008BFPKG/SS-000-K/400mA
- Durable metal enclosure designed for harsh industrial conditions
- Programmable output function typically open / default closed
- Featuring a sturdy DIN connector
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open / closed; (selectable) |
| Detection range[mm] | 8 |
| Housing | Screw-type |
| measurements[mm] | M18 x 1 |
| Voltage for operation[V] | 10...36 DC |
| Current draw[mA] | 15; (24 V) |
| Safety feature rating | II |
| Reverse polarity safeguard | yes |
| Weight[g] | 88.9 |
| Housing | Screw-type |
| Installation | recessed installation compatible |
| measurements[mm] | M18 x 1 |
| Thread specification | M18 x 1 |
| Substance | brass white bronze plated; PC |
| Connection | Connector: 1 x valve type A DIN (DIN EN 175301-803) |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | -32...70 | ||
| Safety feature | IP 67 |
Monitoring range
| Detection range[mm] | 8 |
| Actual sensing range Sr[mm] | 8 ± 10 % |
| Operational range[mm] | 0...6.5 |
| Electrical engineering design | PNP |
| Output feature | typically open / closed; (selectable) |
| Max. voltage drop at switching output DC[V] | 2.5 |
| Continuous current rating of the switching output DC[mA] | 400 |
| DC switching frequency[Hz] | 250 |
| Overcurrent protection | yes |
| Method of overcurrent protection | yes (momentary) |
| Overcurrent protection | yes |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Hysteresis[% of Sr] | 3...10 |
| Setting-point drift[% of Sr] | -18...18 |
Download Specification for IG5910
