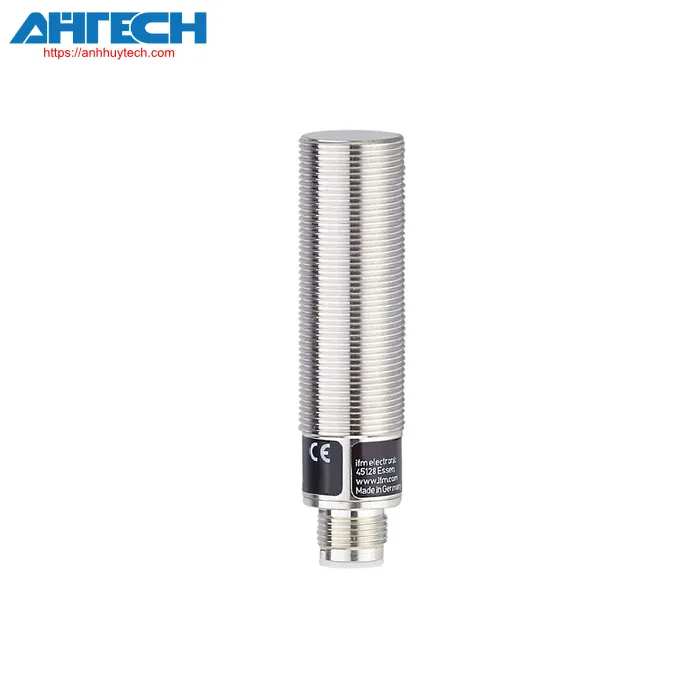

Inductive Sensor IG5958
Brand: Ifm
Product Code: IGK2008BFRKG/US-100-IRF
- Programmable output function typically open / default closed
- Two-conductor technology
- Extended sensing range reduces physical wear and tear
- Wide operating voltage range
- Durable metal enclosure designed for harsh industrial conditions
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP/NPN |
| Output feature | typically open / closed; (selectable) |
| Detection range[mm] | 8 |
| Housing | Screw-type |
| measurements[mm] | M18 x 1 / L = 72 |
| System | Extended sensing range |
Mechanical data
| Weight[g] | 61 | ||
| Housing | Screw-type | ||
| Installation | recessed installation compatible | ||
| measurements[mm] | M18 x 1 / L = 72 | ||
| Thread specification | M18 x 1 | ||
| Substance | brass white bronze plated; CO-PC | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 | ||
| Hysteresis[% of Sr] | 1...15 |
Outputs
| Electrical engineering design | PNP/NPN | |
| Output feature | typically open / closed; (selectable) | |
| Max. voltage drop at switching output DC[V] | 4.6 | |
| Minimum load current[mA] | 4 | |
| Max. stray current[mA] | 0.8 | |
| Continuous current rating of the switching output DC[mA] | 400 | |
| DC switching frequency[Hz] | 250 | |
| Overcurrent protection | yes | |
| Method of overcurrent protection | yes (momentary) | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...55 DC | |
| Safety feature rating | II | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 8 | |
| Operational range[mm] | 0...6.48 | |
| Extended sensing range | yes | |
| Surrounding temperature value[°C] | -25...70 | |
| Safety feature | IP 67 | |
| Items provided |
|
Download Specification for IG5958
