Inductive Sensor Ifm IGS001
IFM CATEGORIES

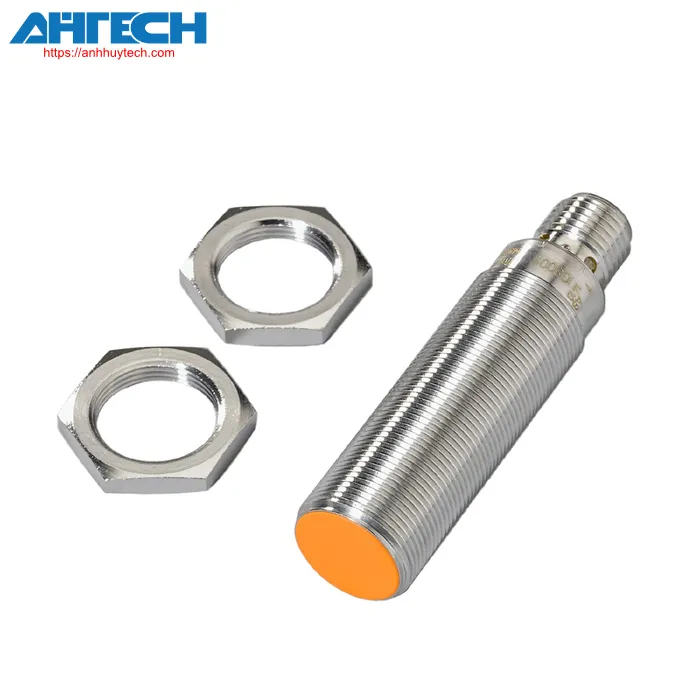

Inductive Sensor IGS001
Brand: Ifm
Product Code: IGK2008BARKA/M/LS-104AK
- With AC/ DC combined output
- Two-conductor technology
- Durable metal enclosure designed for harsh industrial conditions
- Easily discernible indication of the switching status
- Extended sensing range reduces physical wear and tear
Contact via Zalo
Phone call
Product characteristics
| Output feature | typically open |
| Detection range[mm] | 8 |
| Housing | Screw-type |
| measurements[mm] | M18 x 1 / L = 70 |
| System | gold-plated terminals; Expanded sensing range |
| Application | Industrial uses |
Mechanical data
| Weight[g] | 60.9 | ||
| Housing | Screw-type | ||
| Installation | recessed installation compatible | ||
| measurements[mm] | M18 x 1 / L = 70 | ||
| Thread specification | M18 x 1 | ||
| Substance | brass white bronze plated; PBT | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 | ||
| Hysteresis[% of Sr] | 3...15 | ||
| Setting-point drift[% of Sr] | -10...10 |
Outputs
| Output feature | typically open | |
| Max. voltage drop at switching output DC[V] | 5.5 | |
| Max. voltage drop at switching output AC[V] | 5.5 | |
| Minimum load current[mA] | 5 | |
| Max. stray current[mA] | 1 | |
| Continuous current rating of the switching output AC[mA] | 200 | |
| Continuous current rating of the switching output DC[mA] | 200 | |
| Momentary current capacity of switching output[mA] | 1200; (20 ms / 0,5 Hz) | |
| AC switching frequency[Hz] | 25 | |
| DC switching frequency[Hz] | 25 | |
| Overcurrent protection | yes | |
| Method of overcurrent protection | yes (momentary) | |
| Overcurrent protection | yes | |
| AC frequency[Hz] | 47...63 | |
| Voltage for operation[V] | 20...140 AC/DC | |
| Safety feature rating | II | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 8 | |
| Actual sensing range Sr[mm] | 8 ± 10 % | |
| Operational range[mm] | 0...6.5 | |
| Extended sensing range | yes | |
| Surrounding temperature value[°C] | -25...70 | |
| Safety feature | IP 67 | |
| Items provided |
|
Download Specification for IGS001
