Inductive Sensor Ifm IGS708
IFM CATEGORIES

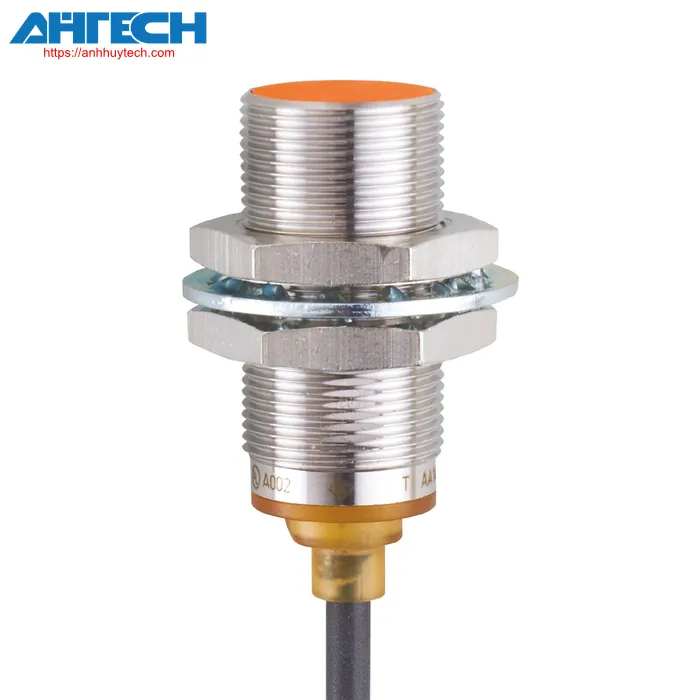

Inductive Sensor IGS708
Brand: Ifm
Product Code: IGB2008BARKG/2M/PUR
- Appropriate for industrial, mobile, cooling, and lubrication applications
- Elevated protection rating to meet the demands of challenging industrial conditions
- Broad operating temperature value spectrum
- Reliable detection enabled by an extensive sensing range and minimal sensor tolerances
- Decreased inventory levels resulting from a broad array of applications
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP/NPN |
| Output feature | typically open |
| Detection range[mm] | 8 |
| Housing | Screw-type |
| measurements[mm] | M18 x 1 / L = 40 |
| System | Drag chain compatibility; Enhanced detection range |
| Application | Industrial uses |
Mechanical data
| Weight[g] | 85.62 | ||||
| Housing | Screw-type | ||||
| Installation | recessed installation compatible | ||||
| measurements[mm] | M18 x 1 / L = 40 | ||||
| Thread specification | M18 x 1 | ||||
| Substance | brass white bronze plated; sensing surface: orange PBT; LED lens: PEI; locknuts: brass white bronze plated | ||||
| Fastening torque[Nm] | refer to operating instructions | ||||
| Drag chain compatibility | yes | ||||
| Drag chain compatibility |
| ||||
| Display |
| ||||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 | ||||
| Hysteresis[% of Sr] | 3...15 | ||||
| Setting-point drift[% of Sr] | -10...10 |
Outputs
| Electrical engineering design | PNP/NPN | ||
| Output feature | typically open | ||
| Max. voltage drop at switching output DC[V] | 2.5 | ||
| Minimum load current[mA] | 2 | ||
| Max. stray current[mA] | 0.6 | ||
| Continuous current rating of the switching output DC[mA] | 100 | ||
| DC switching frequency[Hz] | 400 | ||
| Overcurrent protection | yes | ||
| Overcurrent protection | yes | ||
| Voltage for operation[V] | 10...30 DC; ("supply limited voltage / current" acc. to UL) | ||
| Safety feature rating | III | ||
| Reverse polarity safeguard | yes | ||
| Detection range[mm] | 8 | ||
| Actual sensing range Sr[mm] | 8 ± 10 % | ||
| Operational range[mm] | 0...6.48 | ||
| Extended sensing range | yes | ||
| Surrounding temperature value[°C] | -40...85 | ||
| Safety feature | IP 65; IP 66; IP 67; IP 68; IP 69K | ||
| Items provided |
|
