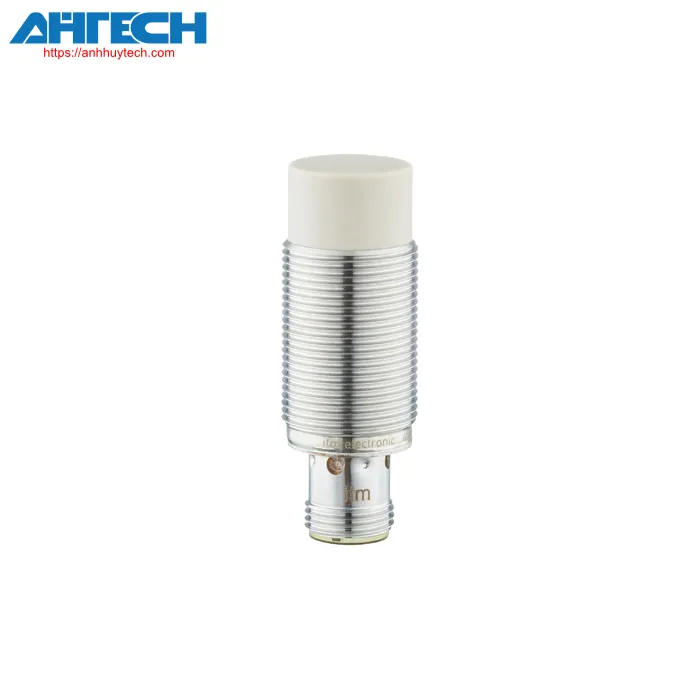

Inductive Sensor Ifm IGT201
IFM CATEGORIES
Inductive Sensor IGT201
Brand: Ifm
Product Code: IGB3012-APKG/V4A/US-104
- Broad operating temperature value spectrum
- Elevated protection rating to meet the demands of challenging industrial conditions
- Durable against high-force per unit area washing using harsh cleaning chemicals
- Durable stainless steel enclosure designed for applications in the food and drink sector
- Temperature shock resistant even in case of frequent temperature value fluctuations
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | default closed |
| Detection range[mm] | 12 |
| Housing | Screw-type |
| measurements[mm] | M18 x 1 / L = 50 |
| System | gold-plated terminals |
| Application | norm cleaning procedures |
Mechanical data
| Weight[g] | 44.2 | ||
| Housing | Screw-type | ||
| Installation | non-recessed mountable | ||
| measurements[mm] | M18 x 1 / L = 50 | ||
| Thread specification | M18 x 1 | ||
| Substance | enclosure: stainless steel (1.4404 / 316L); sensing surface: PEEK natural; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L) | ||
| Fastening torque[Nm] | 50 | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 | ||
| Hysteresis[% of Sr] | 1...20 | ||
| Setting-point drift[% of Sr] | -10...10 |
Outputs
| Electrical engineering design | PNP | |
| Output feature | default closed | |
| Max. voltage drop at switching output DC[V] | 2.5 | |
| Continuous current rating of the switching output DC[mA] | 100 | |
| DC switching frequency[Hz] | 300 | |
| Overcurrent protection | yes | |
| Method of overcurrent protection | yes (momentary) | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...30 DC | |
| Current draw[mA] | < 10 | |
| Safety feature rating | II | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 12 | |
| Actual sensing range Sr[mm] | 12 ± 10 % | |
| Operational range[mm] | 0...9.72 | |
| Surrounding temperature value[°C] | 0...100 | |
| Safety feature | IP 68; IP 69K | |
| Items provided |
|
Download Specification for IGT201
