Inductive Sensor Ifm II5321
IFM CATEGORIES

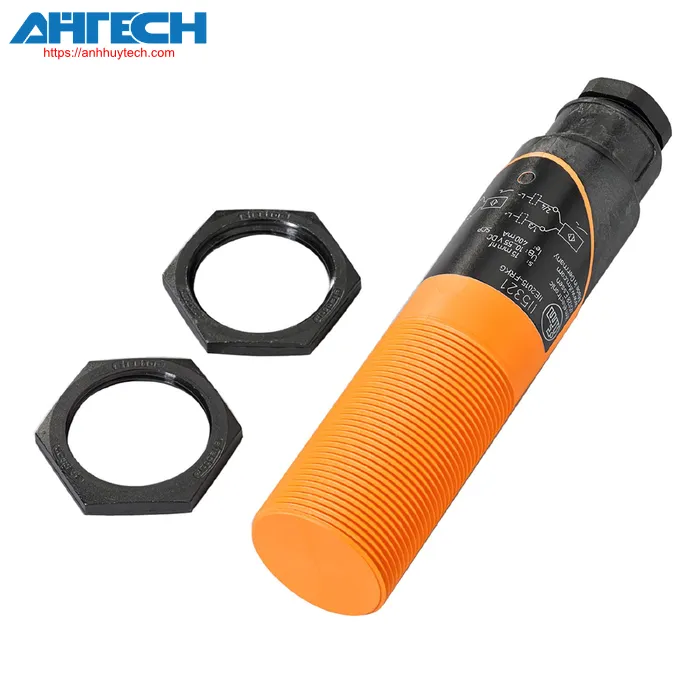

Inductive Sensor II5321
Brand: Ifm
Product Code: IIE2015-FRKG
- Programmable output function typically open / default closed
- Broad operating temperature value spectrum
- Two-conductor technology
- Featuring a terminal chamber that allows for a 90° rotation
- Wide operating voltage range
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP/NPN |
| Output feature | typically open / closed; (selectable) |
| Detection range[mm] | 15 |
| Housing | Screw-type |
| measurements[mm] | M30 x 1.5 |
| Voltage for operation[V] | 10...55 DC |
| Safety feature rating | II |
| Reverse polarity safeguard | yes |
| Weight[g] | 116 |
| Housing | Screw-type |
| Installation | non-recessed mountable |
| measurements[mm] | M30 x 1.5 |
| Thread specification | M30 x 1.5 |
| Substance | PBT; end cap: PC |
| Connection | terminals: ...2.5 mm²; Cable jacket: Ø 7...13 mm; Cable connector: M20 × 1.5 |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | -25...80 | ||
| Safety feature | IP 65 |
Monitoring range
| Detection range[mm] | 15 |
| Actual sensing range Sr[mm] | 15 ± 10 % |
| Operational range[mm] | 0...12.1 |
| Electrical engineering design | PNP/NPN |
| Output feature | typically open / closed; (selectable) |
| Max. voltage drop at switching output DC[V] | 4.6 |
| Minimum load current[mA] | 4 |
| Max. stray current[mA] | 1 |
| Continuous current rating of the switching output DC[mA] | 400 |
| DC switching frequency[Hz] | 200 |
| Overcurrent protection | yes |
| Method of overcurrent protection | yes (momentary) |
| Overcurrent protection | yes |
| Hysteresis[% of Sr] | 1...15 |
| Setting-point drift[% of Sr] | -10...10 |
