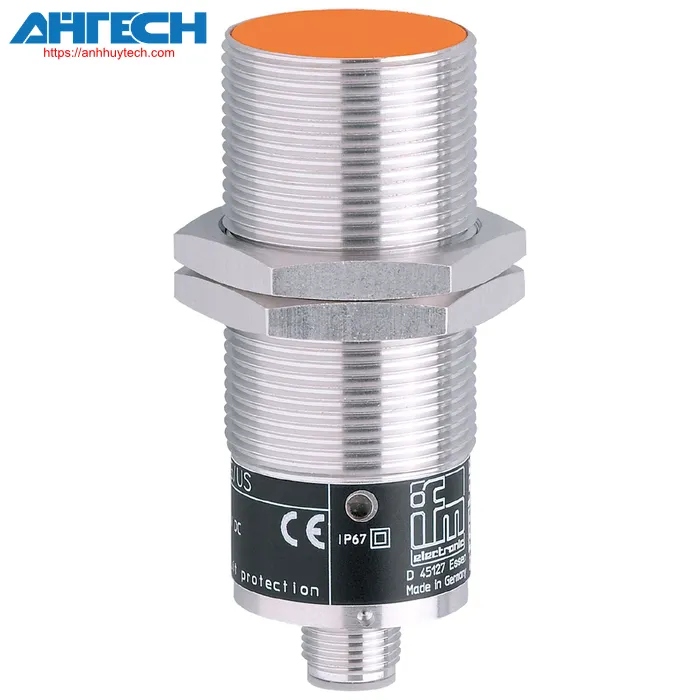

Inductive Sensor II5751
Brand: Ifm
Product Code: IIA2010-FRKG/V4A/US-100-IRF/AU
- Durable stainless steel enclosure designed for applications in the food and drink sector
- Broad operating temperature value spectrum
- Elevated protection rating to meet the demands of challenging industrial conditions
- Programmable output function typically open / default closed
- Two-conductor technology
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP/NPN |
| Output feature | typically open / closed; (selectable) |
| Detection range[mm] | 10 |
| Housing | Screw-type |
| measurements[mm] | M30 x 1.5 / L = 92 |
| System | gold-plated terminals |
| Application | Industrial uses |
Mechanical data
| Weight[g] | 160 | ||
| Housing | Screw-type | ||
| Installation | recessed installation compatible | ||
| measurements[mm] | M30 x 1.5 / L = 92 | ||
| Thread specification | M30 x 1.5 | ||
| Substance | stainless steel (1.4571/316Ti); sensing surface: PC | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 | ||
| Hysteresis[% of Sr] | 3...15 | ||
| Setting-point drift[% of Sr] | -10...10 |
Outputs
| Electrical engineering design | PNP/NPN | |
| Output feature | typically open / closed; (selectable) | |
| Max. voltage drop at switching output DC[V] | 4.6 | |
| Minimum load current[mA] | 4 | |
| Max. stray current[mA] | 0.8 | |
| Continuous current rating of the switching output DC[mA] | 400 | |
| DC switching frequency[Hz] | 450 | |
| Overcurrent protection | yes | |
| Method of overcurrent protection | yes (momentary) | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...55 DC | |
| Safety feature rating | II | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 10 | |
| Actual sensing range Sr[mm] | 10 ± 10 % | |
| Operational range[mm] | 0...8.1 | |
| Surrounding temperature value[°C] | -25...80 | |
| Safety feature | IP 67 | |
| Items provided |
|
