Inductive Sensor Ifm II5800
IFM CATEGORIES

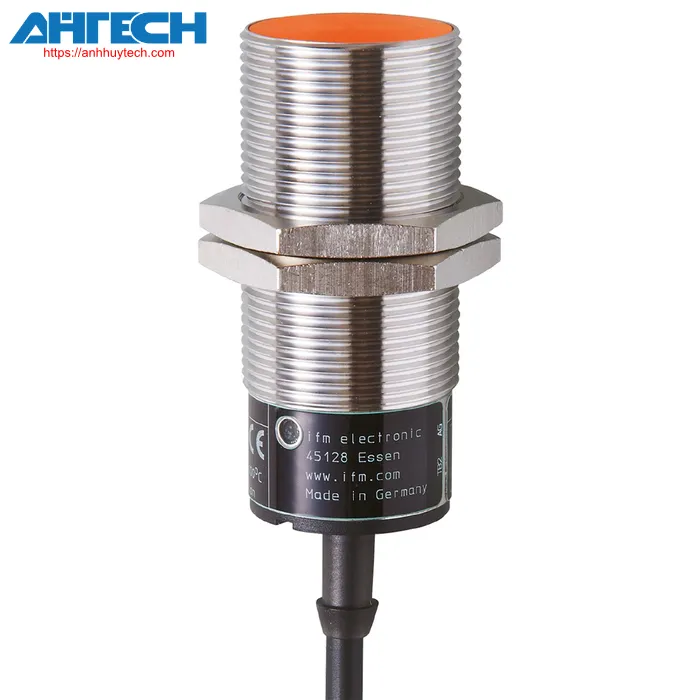

Inductive Sensor II5800
Brand: Ifm
Product Code: IIA4010ZCPKG/6M/BH
- Supplementary output functionality NO/NC
- Broad operating temperature value spectrum
- Durable metal enclosure designed for harsh industrial conditions
- Equipped with an extended PUR cable
- For accurate position sensing on machinery
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | supplementary |
| Detection range[mm] | 10 |
| Housing | Screw-type |
| measurements[mm] | M30 x 1.5 / L = 67 |
| System | Free of halogens |
Mechanical data
| Weight[g] | 373 | ||
| Housing | Screw-type | ||
| Installation | recessed installation compatible | ||
| measurements[mm] | M30 x 1.5 / L = 67 | ||
| Thread specification | M30 x 1.5 | ||
| Substance | brass white bronze plated; PBT | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3 | ||
| Hysteresis[% of Sr] | 1...15 | ||
| Setting-point drift[% of Sr] | -10...10 |
Outputs
| Electrical engineering design | PNP | |
| Output feature | supplementary | |
| Max. voltage drop at switching output DC[V] | 2.5 | |
| Continuous current rating of the switching output DC[mA] | 100; (250 (...80 °C)) | |
| DC switching frequency[Hz] | 400 | |
| Overcurrent protection | yes | |
| Method of overcurrent protection | yes (momentary) | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...36 DC | |
| Current draw[mA] | < 15 | |
| Safety feature rating | II | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 10 | |
| Actual sensing range Sr[mm] | 10 ± 10 % | |
| Operational range[mm] | 0...8.1 | |
| Surrounding temperature value[°C] | -25...100 | |
| Safety feature | IP 67 | |
| Items provided |
|
Download Specification for II5800
