Inductive Sensor Ifm II5910
IFM CATEGORIES

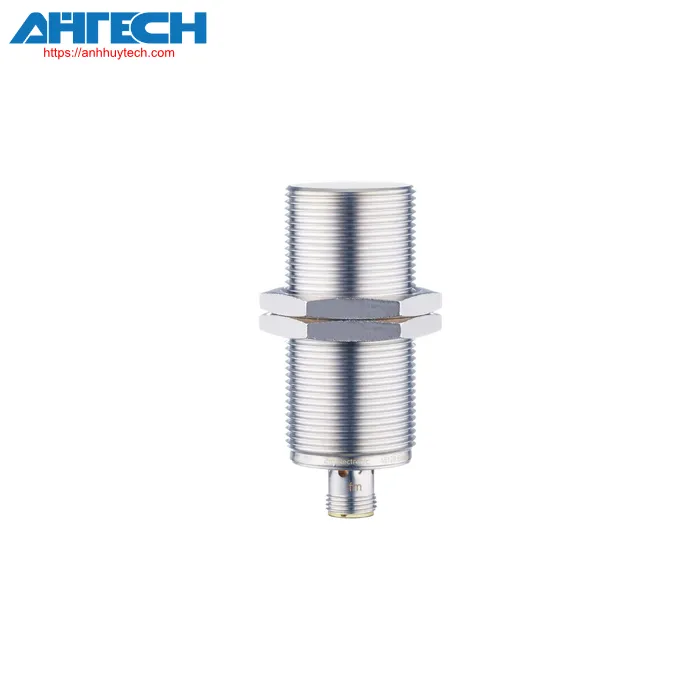

Inductive Sensor II5910
Brand: Ifm
Product Code: IIA3015BBPKG/US-104
- Sturdy metal enclosure designed for application in mobile machinery
- Easily discernible indication of the switching status
- Extended sensing range reduces physical wear and tear
- For accurate position sensing on machinery
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open |
| Detection range[mm] | 15 |
| Housing | Screw-type |
| measurements[mm] | M30 x 1.5 / L = 75 |
| System | gold-plated terminals |
| Application | Industrial uses |
Mechanical data
| Weight[g] | 130 | ||
| Housing | Screw-type | ||
| Installation | recessed installation compatible | ||
| measurements[mm] | M30 x 1.5 / L = 75 | ||
| Thread specification | M30 x 1.5 | ||
| Substance | enclosure: brass with white bronze coating; sensing surface: white PBT; LED cover: PEI; locking nuts: brass with white bronze plating | ||
| Fastening torque[Nm] | 50 | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 | ||
| Hysteresis[% of Sr] | 1...20 | ||
| Setting-point drift[% of Sr] | -10...10 |
Outputs
| Electrical engineering design | PNP | |
| Output feature | typically open | |
| Max. voltage drop at switching output DC[V] | 2.5 | |
| Continuous current rating of the switching output DC[mA] | 200 | |
| DC switching frequency[Hz] | 100 | |
| Overcurrent protection | yes | |
| Method of overcurrent protection | yes (momentary) | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...32 DC | |
| Current draw[mA] | 10 | |
| Safety feature rating | II | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 15 | |
| Actual sensing range Sr[mm] | 15 ± 10 % | |
| Operational range[mm] | 0...12.15 | |
| Surrounding temperature value[°C] | -40...70 | |
| Safety feature | IP 67 | |
| Items provided |
|
Download Specification for II5910
