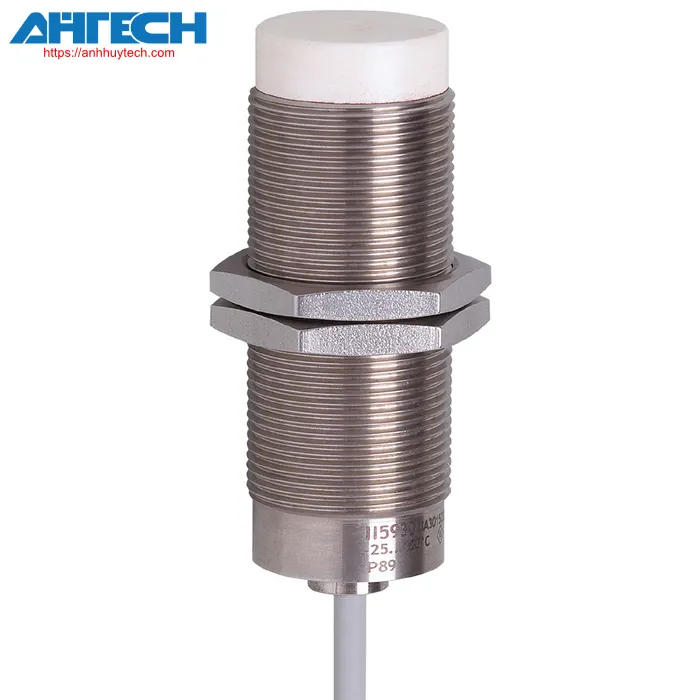

Inductive Sensor Ifm II5930

IFM CATEGORIES

Brand: Ifm
Product Code: IIA3015ZBPKG/5M/SH

Suitable for operation at temperature values reaching 180 °C
Suitable for use in the steel and glass sectors
Sensor and processing unit combined in a single enclosure
Durable stainless steel enclosure designed for demanding industrial settings
5 m silicone cable designed for termination in high-temperature value environments

Share on:

Description Download Accessories

Electrical engineering design	PNP
Output feature	typically open
Detection range[mm]	15
Housing	Screw-type
measurements[mm]	M30 x 1.5 / L = 79
Application	high-temperature value usages
Connection	Cable: 5 m, silicone; highly flexible; 3 x 0.22 mm²

Weight[g]

357

Housing

Screw-type

Installation

non-recessed mountable

measurements[mm]

M30 x 1.5 / L = 79

Thread specification

M30 x 1.5

Substance

enclosure: stainless steel; sensing surface: LCP

Items provided

lock nuts: 2

Adjustment coefficient

steel: 1 / stainless steel: 0.6 / brass: 0.3 / aluminum: 0.2 / copper: 0.1

Hysteresis[% of Sr]

3...15

Setting-point drift[% of Sr]

-10...10

Electrical engineering design	PNP
Output feature	typically open
Max. voltage drop at switching output DC[V]	2
Continuous current rating of the switching output DC[mA]	150
DC switching frequency[Hz]	200
Overcurrent protection	yes
Method of overcurrent protection	yes (momentary)
Overcurrent protection	yes
Voltage for operation[V]	10...35 DC
Current draw[mA]	< 15
Safety feature rating	III
Reverse polarity safeguard	yes
Detection range[mm]	15
Operational range[mm]	0...12.1
Surrounding temperature value[°C]	0...180
Safety feature	IP 65
