Inductive Sensor Ifm II7104
IFM CATEGORIES

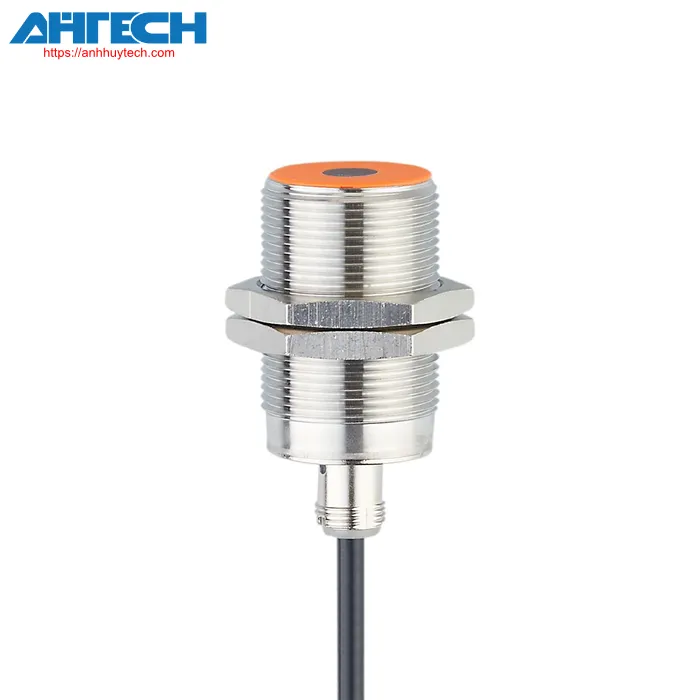

Inductive Sensor II7104
Brand: Ifm
Product Code: IIK3010-BPKG/2M/PUR
- Outstanding cost-effectiveness ratio
- Durable metal enclosure designed for harsh industrial conditions
- Durable and easily readable laser-printed label
- Easily discernible indication of the switching status
- Elevated protection rating to meet the demands of challenging industrial conditions
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open |
| Detection range[mm] | 10 |
| Housing | Screw-type |
| measurements[mm] | M30 x 1.5 / L = 60 |
| Voltage for operation[V] | 10...30 DC |
| Current draw[mA] | < 10 |
| Safety feature rating | III |
| Reverse polarity safeguard | yes |
| Weight[g] | 179.1 |
| Housing | Screw-type |
| Installation | recessed installation compatible |
| measurements[mm] | M30 x 1.5 / L = 60 |
| Thread specification | M30 x 1.5 |
| Substance | enclosure: brass with white bronze finish; sensing surface: orange PBT; LED cover: PEI; locking nuts: brass with white bronze plating |
| Fastening torque[Nm] | 50 |
| Connection | Cable: 2 m, PUR, Ø 4.0 mm; 3 x 0.34 mm² |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | -25...75 | ||
| Safety feature | IP 67 |
Monitoring range
| Detection range[mm] | 10 |
| Actual sensing range Sr[mm] | 10 ± 10 % |
| Operational range[mm] | 0...8.1 |
| Electrical engineering design | PNP |
| Output feature | typically open |
| Max. voltage drop at switching output DC[V] | 2.5 |
| Continuous current rating of the switching output DC[mA] | 100 |
| DC switching frequency[Hz] | 200 |
| Overcurrent protection | yes |
| Overcurrent protection | yes |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Hysteresis[% of Sr] | 3...15 |
| Setting-point drift[% of Sr] | -10...10 |
