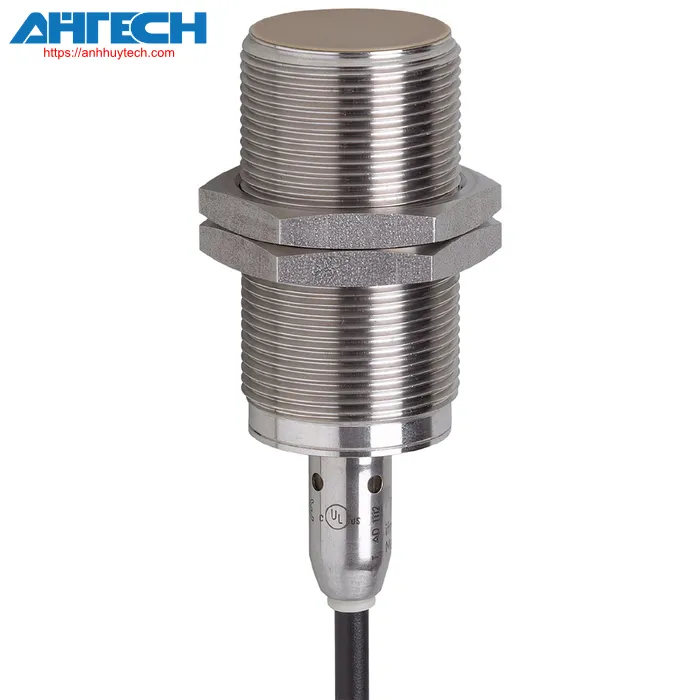

Inductive Sensor Ifm IIT210

IFM CATEGORIES

Inductive Sensor Ifm iit210

Inductive Sensor IIT210

Brand: Ifm
Product Code: IIKC014BASKG/M/V4A/10M

  • Broad operating temperature value spectrum
  • Temperature shock resistant even in case of frequent temperature value fluctuations
  • Durable stainless steel enclosure designed for applications in the food and drink sector
  • Durable against high-force per unit area washing using harsh cleaning chemicals
  • Elevated protection rating to meet the demands of challenging industrial conditions

Contact via Zalo  Contact via Zalo Phone call  Phone call
Share on:
Description Download Accessories

Product characteristics

Electrical engineering design PNP/NPN
Output feature typically open
Detection range[mm] 14
Housing Screw-type
measurements[mm] M30 x 1.5 / L = 81
System Extended sensing range; optical alignment assistance
Application norm cleaning procedures

Mechanical data

Weight[g] 456.8
Housing Screw-type
Installation recessed installation compatible
measurements[mm] M30 x 1.5 / L = 81
Thread specification M30 x 1.5
Substance stainless steel (1.4404 / 316L); sensing surface: PEEK
Display
Switching condition4 x 90° LED, yellow
Adjustment aid1 x LED, red
Optical setting aid yes
Adjustment coefficient steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
Hysteresis[% of Sr] 3...15
Setting-point drift[% of Sr] -10...10

Outputs

Electrical engineering design PNP/NPN
Output feature typically open
Max. voltage drop at switching output DC[V] 2.5
Minimum load current[mA] 2; (only in 2-wire operation)
Max. stray current[mA] 0.5; (only in 2-wire operation)
Continuous current rating of the switching output DC[mA] 100
DC switching frequency[Hz] 100
Overcurrent protection yes
Method of overcurrent protection yes (momentary)
Overcurrent protection yes
Voltage for operation[V] 10...36 DC
Current draw[mA] < 10; (only in 3-wire operation)
Safety feature rating II
Reverse polarity safeguard yes
Detection range[mm] 14
Actual sensing range Sr[mm] 14 ± 10 %
Operational range[mm] 0...11.34
Extended sensing range yes
Surrounding temperature value[°C] 0...100
Safety feature IP 68; IP 69K
Items provided
lock nuts: 2

Download Specification for IIT210

Download PDF
