Inductive Sensor Ifm IM5135
IFM CATEGORIES

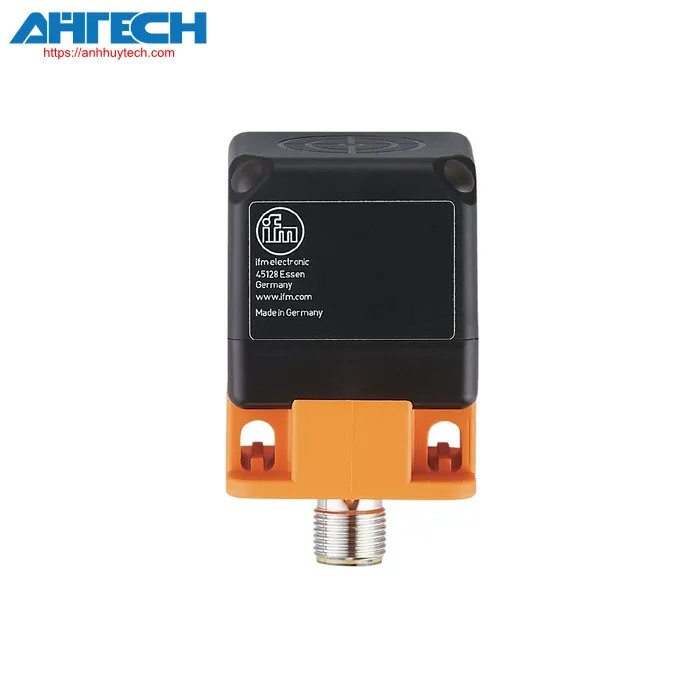

Inductive Sensor IM5135
Brand: Ifm
Product Code: IMC4040-CPKG/K1/US-100-DPA
- Adjustment coefficient K=1: Uniform sensing range across all metals
- Extended sensing range for use in conveying applications
- Supplementary output functionality NO/NC
- Five customizable detection surface positions
- Corner LEDs are easily visible from any installed orientation
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | supplementary |
| Detection range[mm] | 40 |
| Housing | rectangular shape |
| measurements[mm] | 40 x 40 x 54 |
| System | correction factor = 1; magnetic field resistant |
| Immune to magnetic fields | yes |
| Max. immunity to electromagnetic interference[mT] | 300 |
| Connection | Connector: 1 x M12; coding: A; locking: secure, rotatable, stainless steel (1.4404 / 316L) |
Mechanical data
| Weight[g] | 134 | ||||
| Housing | rectangular shape | ||||
| Sensing face | 5 selectable positions | ||||
| Installation | non-recessed mountable | ||||
| measurements[mm] | 40 x 40 x 54 | ||||
| Substance | enclosure: PA; sensing surface: black PA; end cover: PA; clamp: orange; fastener: stainless steel (1.4567 / 304Cu) | ||||
| Display |
| ||||
| Adjustment coefficient | steel: 1 / stainless steel: 1 / brass: 1 / aluminum: 1 / copper: 1 | ||||
| Hysteresis[% of Sr] | 1...20 | ||||
| Setting-point drift[% of Sr] | -10...10 | ||||
| Adjustment coefficient = 1 | yes |
Outputs
| Electrical engineering design | PNP |
| Output feature | supplementary |
| Max. voltage drop at switching output DC[V] | 2.5 |
| Max. stray current[mA] | 0.1 |
| Continuous current rating of the switching output DC[mA] | 200 |
| DC switching frequency[Hz] | 200 |
| Overcurrent protection | yes |
| Method of overcurrent protection | yes (momentary) |
| Overcurrent protection | yes |
| Voltage for operation[V] | 10...36 DC |
| Current draw[mA] | < 20 |
| Safety feature rating | II |
| Reverse polarity safeguard | yes |
| Detection range[mm] | 40 |
| Actual sensing range Sr[mm] | 40 ± 10 % |
| Operational range[mm] | 0...32.4 |
| Surrounding temperature value[°C] | -25...70 |
| Safety feature | IP 67; IP 69K |
Download Specification for IM5135
