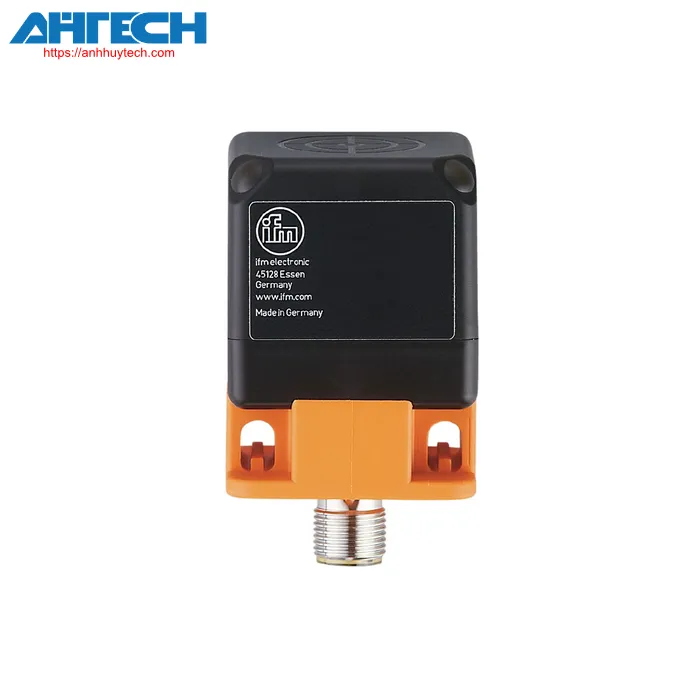

Inductive Sensor IM5139

Brand: Ifm
Product Code: IMC4015A1PKG/IO/US

Non-contact assessment of distances up to 15 mm
Accurate linear current output
Broad operating temperature value spectrum
Excellent repeatability
LED display for monitoring operational range and functionality

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Product characteristics

Electrical engineering design	PNP/NPN; (customizable)
Output feature	typically open / closed; (customizable)
communication interface	IO-Link
Housing	rectangular shape
measurements[mm]	40 x 40 x 54
Voltage for operation[V]	15...30 DC
Current draw[mA]	< 33
Safety feature rating	II
Reverse polarity safeguard	yes
Surrounding temperature value[°C]	-25...80
Safety feature	IP 67

Tests / approvals

Weight[g]	190
Housing	rectangular shape
Sensing face	5 selectable positions
Installation	recessed installation compatible
measurements[mm]	40 x 40 x 54
Substance	PA; brass with white bronze plating
Response duration[ms]	< 20

Monitoring range

Measuring span[mm]

1...15

IO-Link for switch points[mm]

2.37...13.99

Electrical engineering design

PNP/NPN; (customizable)

Output feature

typically open / closed; (customizable)

Max. voltage drop at switching output DC[V]

2.5

Continuous current rating of the switching output DC[mA]

100

DC switching frequency[Hz]

100

Analog current output[mA]

4...20; (linear; slope: 1.143 mA/mm; for front approach and for target constructed from mild steel: 45 x 45 x 1 mm)

Max. capacity[O]

500; (Ub <=18 V;; Max. capacity <=400 O)

Overcurrent protection

yes

Overcurrent protection

yes

Adjustment coefficient

steel: 1 / stainless steel: 0.9 / brass: 0.4 / aluminum: 0.4 / copper: 0.3

Hysteresis[% of Sr]

3...15

Comment on hysteresis

customizable

Linearity error of analog output[%]

± 2; (of the ultimate measurement range value)

Reproducibility analog output[%]

± 2; (of the ultimate measurement range value)

Temperature sensitivity[%/K of the reference value]

±0,15

Temperature variation

± 5 %; (of the ultimate measurement range value)

communication interface

IO-Link

Mode of transmission

COM2 (38,4 kBaud)

IO-Link version

1.1

SDCI specification

IEC 61131-9

Configurations

Intelligent Sensor: Identification and Fault Detection; Multi-channel, two setpoint switching sensor, Type 0 Generic Profiled Sensor; Learning Channel

SIO mode

yes

Necessary master port category

Minimum process cycle duration[ms]

3.2

IO-Link cyclic process data
