Inductive Sensor Ifm IO5016
IFM CATEGORIES

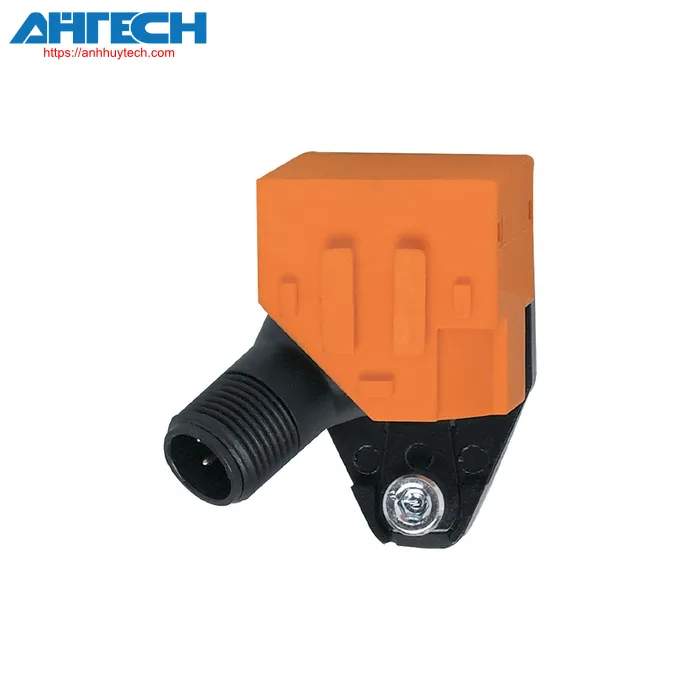

Inductive Sensor IO5016
Brand: Ifm
Product Code: IOW2010-ARKG/UP/US-100 RT
- Suitable for applications with limited space
- Snap-fit installation for quick setup
- Three selectable positions for the detection surface
- Impervious to oils and coolants
- M12 connector with 270° rotational flexibility
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP/NPN |
| Output feature | typically open |
| Detection range[mm] | 10 |
| Housing | rectangular shape |
| measurements[mm] | 26 x 26 x 43 |
| Voltage for operation[V] | 10...36 DC |
| Safety feature rating | II |
| Reverse polarity safeguard | yes |
| Weight[g] | 45.78 |
| Housing | rectangular shape |
| Installation | recessed installation compatible |
| measurements[mm] | 26 x 26 x 43 |
| Substance | PA |
| Connection | Connector: 1 x M12; coding: A; locking mechanism: rotatable |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | -25...70 | ||
| Safety feature | IP 67 |
Monitoring range
| Detection range[mm] | 10 |
| Actual sensing range Sr[mm] | 10 ± 10 % |
| Operational range[mm] | 0...8.1 |
| Electrical engineering design | PNP/NPN |
| Output feature | typically open |
| Max. voltage drop at switching output DC[V] | 4.6 |
| Minimum load current[mA] | 2 |
| Max. stray current[mA] | 0.6 |
| Continuous current rating of the switching output DC[mA] | 100 |
| DC switching frequency[Hz] | 250 |
| Overcurrent protection | yes |
| Method of overcurrent protection | yes (momentary) |
| Overcurrent protection | yes |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Hysteresis[% of Sr] | 1...15 |
| Setting-point drift[% of Sr] | -10...10 |
Download Specification for IO5016
