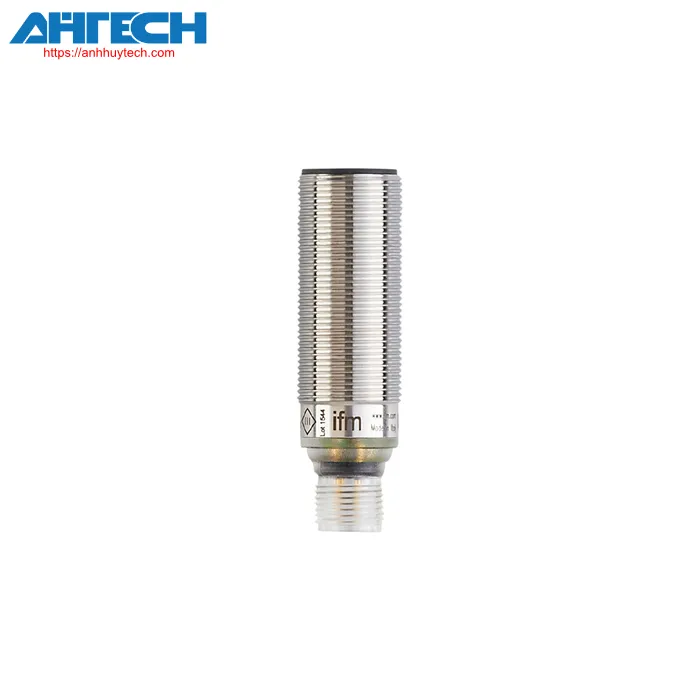

Ultrasonic Sensor UGT208

Brand: Ifm
Product Code: UG-02200E2KG/IO-LINK/US

Extremely wide detection range
Easy adjustment of the detection range through a actuator switch or IO-Link
Easily visible LED for displaying switching status and echo
Equipped with a programmable switching output and an analog output
Non-contact sensing unaffected by the object's color, transparency, or surface properties

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Product characteristics

Electrical engineering design	PNP
Output feature	typically open / closed; (customizable)
Detection range[mm]	200...2200; (Target: 200 x 200 mm)
communication interface	IO-Link
Housing	Screw-type
measurements[mm]	M18 x 1 / L = 97.5
Voltage for operation[V]	10...30 DC; (cULus - Class 2 source required)
Current draw[mA]	55
Safety feature rating	III
Reverse polarity safeguard	yes
Activation delay time[s]	< 0.3
Frequency converter[kHz]	200
Configuration options	hysteresis / bandwidth; secondary switching point; activation and deactivation delay; switch-on cycles; teach mode; light-on/dark-on configuration
Weight[g]	67
Housing	Screw-type
measurements[mm]	M18 x 1 / L = 97.5
Thread specification	M18 x 1
Substance	PBT; PA; epoxy glass-ceramics
Fastening torque[Nm]	1

Interfaces

communication interface

IO-Link

Mode of transmission

COM2 (38,4 kBaud)

IO-Link version

1.1

SDCI specification

IEC 61131-9

Configurations

Intelligent Sensor: Device Identification; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Data Process Variable; Device Diagnosis; Learning Channel

SIO mode

yes

Necessary master port category

Minimum process cycle duration[ms]

3.2

IO-Link cyclic process data

Operation	bit length
measured value	16
device status	4
two-state switching data	2

IO-Link acyclical functions

application-specific label; runtime meter

Supported DeviceIDs

Mode of operation	DeviceID
default	705

Note

For additional details, please refer to the IODD PDF document in the "Downloads" section

Surrounding temperature value[°C]

-20...70

Temperature for storage[°C]

-30...80

Safety feature

IP 67

Temperature adjustment

yes

Hysteresis[%]

< 2

Setting-point drift[%]

-2...2

Linearity error of analog output[%]

Reproducibility

1 %

Comments on the precision / variation

The specified values are achieved following a warm-up period of at least 20 minutes

Outputs

Overall count of outputs	2
Output response	output signal; analog output; IO-Link
Electrical engineering design	PNP
Count of digital outputs	1
Output feature	typically open / closed; (customizable)
Max. voltage drop at switching output DC[V]	2.2
Continuous current rating of the switching output DC[mA]	100
DC switching frequency[Hz]	2
Total analog outputs	1
Analog voltage output[V]	0...10
Minimum load resistance[O]	3000
Overcurrent protection	yes
Overcurrent protection	yes
Definition of detail level of analog signal output	< 3 mm
Total count of inputs and outputs	Total digital outputs: 1; Total analog outputs: 1
Detection range[mm]	200...2200; (Target: 200 x 200 mm)
shadow area[mm]	200
Cylindrical aperture angle[°]	14; (±2)
Max. allowable angle deviation from 90° for sensor/object[°]	± 4
Response duration[ms]	< 300; (analog output)
