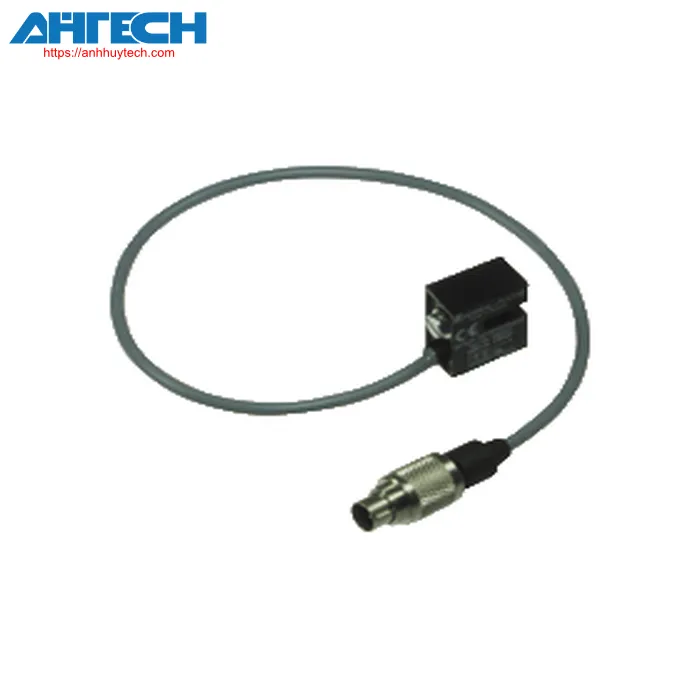

Inductive Sensor Pepperl+Fuchs 50.000/0400
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of GT3,51 50.000/0400
| Overall specifications | ||
|---|---|---|
| transition function | normally open (NO) | |
| Output configuration | PNP | |
| Slot width | 3.5 mm | |
| Lateral immersion depth | 4 ... 6 typ. 6 mm | |
| Output configuration | DC | |
| Output configuration | 3-wire | |
| Rated specifications | ||
| Operational voltage | 6 ... 30 V | |
| commutation frequency | 0 ... 2000 Hz | |
| Deadband | 0.15 ... 0.6 mm | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | yes | |
| voltage loss | = 3 V | |
| Operational current | 0 ... 100 mA | |
| No-load input current | = 15 mA | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical characteristics | ||
| Housing material | PA 6.6 | |
| Protection等级 | IP67 | |
| Mass | 18 g | |
| Measurements | ||
| Height | 17 mm | |
| Width | 10 mm | |
| Length | 20 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for 50.000/0400
Download PDF
