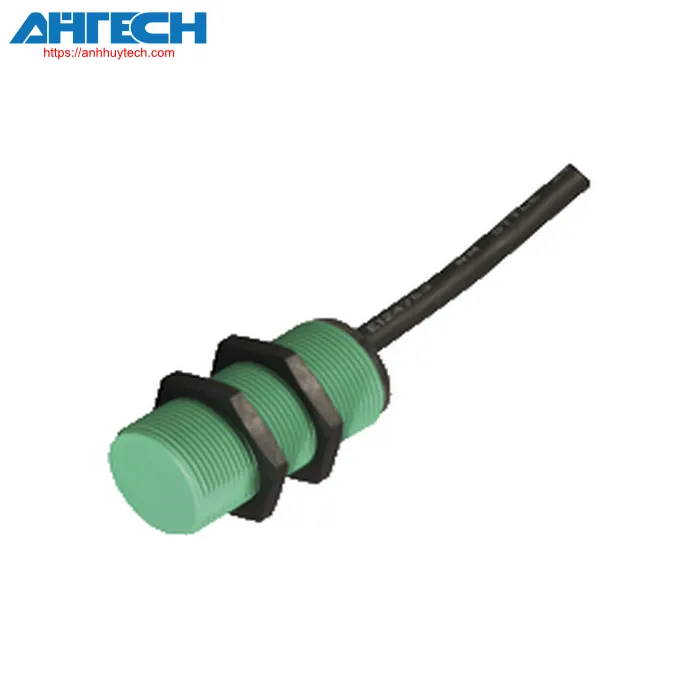

Inductive Sensor Pepperl+Fuchs NBB10-30GK60-AR-180MM-6DT06
Pepperl+Fuchs Categories
Inductive Sensor NBB10-30GK60-AR-180MM-6DT06
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBB10-30GK60-AR-180MM-6DT06
| Overall specifications | ||
|---|---|---|
| transition function | switching contact | |
| Output configuration | relay | |
| Specified functioning distance | 10 mm | |
| mounting | flush | |
| Output configuration | DC | |
| diminution factor rAl | 0.4 | |
| diminution factor rCu | 0.3 | |
| diminution factor r304 | 0.85 | |
| Output configuration | Relay output | |
| Mechanical lifespan | No load: 2 x 107 operations Full load: 1 x 105 switching cycles | |
| Rated specifications | ||
| Operational voltage | 10 ... 30 V DC |
|
| commutation frequency | 20 Hz | |
| Deadband | approx. 10 % | |
| Polarity reversal protection | yes | |
| Overcurrent protection | no | |
| Operational current | = 50 mA | |
| State indication for switching | LED, yellow | |
| Output | ||
| Switching voltage level | max 28 V DC | |
| Switching capacity | maximum 6 A DC resistive circuit | |
| Conversion power | max 180 W | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical characteristics | ||
| Linkage method | permanent cable with plug | |
| cross section of the core | 0.75 mm2 | |
| Housing material | PBT | |
| detection surface | PBT | |
| Protection等级 | IP68 | |
| Connector device | ||
| Linkage unit | Connector device: DT06-6S-C015 Terminal: 1062-16-0622 Wedge Lock: W6S Connector device receptacle: 114017 Protective Loom: 911365 |
|
| Cable | ||
| Length | L = 170 m | |
| Measurements | ||
| Length | 60 mm | |
| Diameter | 30 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NBB10-30GK60-AR-180MM-6DT06
