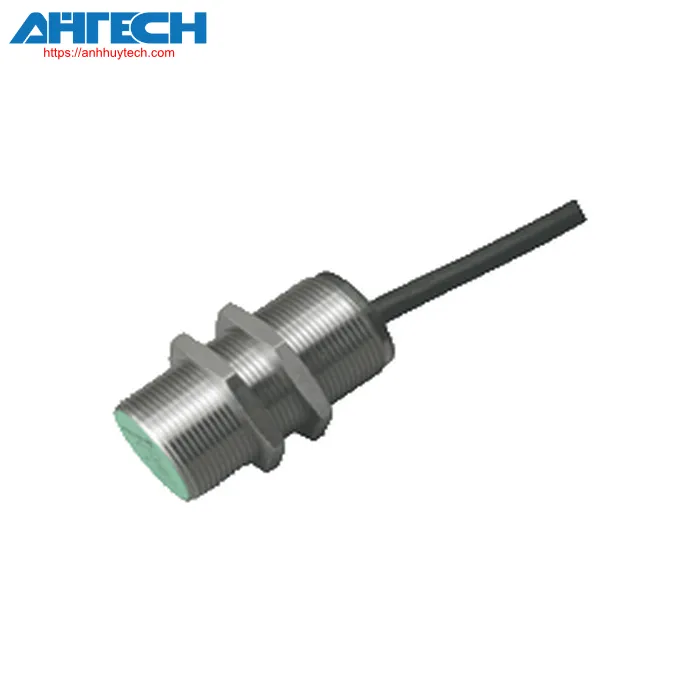

Inductive Sensor Pepperl+Fuchs NBB10-30GM60-AAR-Y906216

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Item Specification
Inductive proximity sensor

Overall specifications
transition function		switching contact
Output configuration		relay
Specified functioning distance		10 mm
mounting		flush
Output configuration		DC
diminution factor r_Al		0.4
diminution factor r_Cu		0.3
diminution factor r₃₀₄		0.85
Output configuration		Relay output
Mechanical lifespan		No load: 2 x 10⁷ operations Full load: 1 x 10⁵ switching cycles
Rated specifications
Operational voltage		10 ... 30 V DC
commutation frequency		20 Hz
Deadband		approx. 10 %
Polarity reversal protection		yes
Overcurrent protection		no
Operational current		= 50 mA
State indication for switching		LED, yellow
Output
Switching voltage level		max 28 V DC
Switching capacity		maximum 6 A DC resistive circuit
Conversion power		max 180 W
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Standard Use
Environmental conditions
Ambient temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Linkage method		1 m, PUR wire, robust jacket, 4-conductor, # 18 AWG
cross section of the core		0.75 mm²
Housing material		brass with a nickel coating
detection surface		PBT
Protection等级		IP67
Measurements
	Length	60 mm
	Diameter	30 mm
