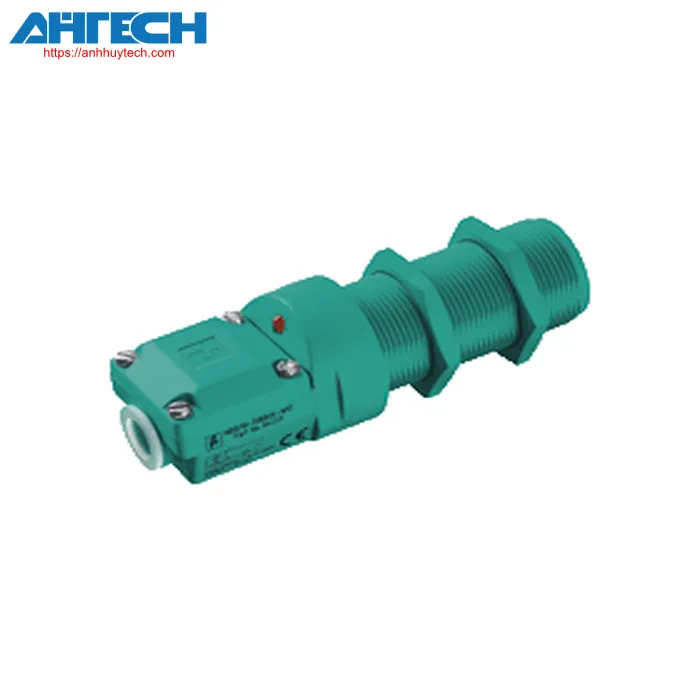

Inductive Sensor Pepperl+Fuchs NBB15-30GKK-WO

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
transition function		Typically closed (NC)
Output configuration		Two-wire
Specified functioning distance		15 mm
mounting		flush
Output configuration		AC
Guaranteed functioning distance		0 ... 12.15 mm
diminution factor r_Al		0.33
diminution factor r_Cu		0.28
diminution factor r₃₀₄		0.82
Output configuration		2-wire
Rated specifications
Operational voltage		20 ... 250 V
commutation frequency		0 ... 20 Hz
Deadband		typ. 5 %
Overcurrent protection		no
voltage loss		= 8 V
Transient current (20 ms, 0.1 Hz)		0 ... 1600 mA
Operational current		1.5 ... 200 mA
No-load input current		= 1.7 mA
Delay time prior to availability		= 20 ms
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Standard Use
CSA certification		cCSAus Listed, Intended for General Use
CCC certification		Approved by China Compulsory Certification (CCC)
Environmental conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical characteristics
Linkage method		terminal chamber
cross section of the core		up to 2.5 mm²
Housing material		PBT
detection surface		PBT
Protection等级		IP67
Measurements
	Length	115 mm
	Diameter	30 mm
Note		¹⁾ In the temperature range below 0 °C, the allowable functioning voltage U_b 80...253 V Safety fuse = 0.3 A (fast-acting) per IEC 60127-2 Sheet 1 Recommendation: after a short circuit, verify that the device is functioning properly
