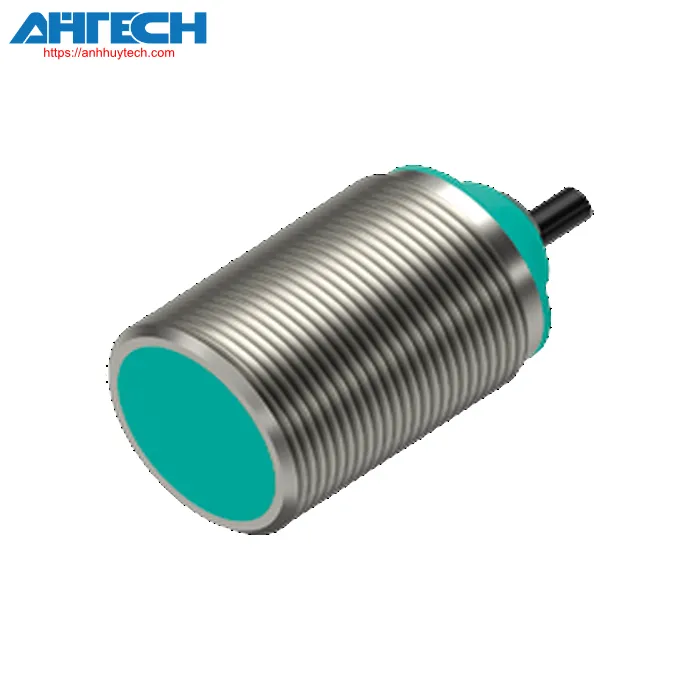

Inductive Sensor Pepperl+Fuchs NBB15-30GM40-EU-M1
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBB15-30GM40-EU-M1
| Overall specifications | ||
|---|---|---|
| Output configuration | Digital voltage signal output | |
| Specified functioning distance | 15 mm | |
| mounting | flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 12.15 mm | |
| Actuating component | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 45 mm x 45 mm x 1 mm |
|
| diminution factor rAl | 0.45 | |
| diminution factor rCu | 0.4 | |
| diminution factor r304 | 0.7 | |
| diminution factor rBrass | 0.5 | |
| Output configuration | 3-wire | |
| Rated specifications | ||
| Operational voltage | 7 ... 30 V DC | |
| commutation frequency | 0 ... 500 Hz | |
| Deadband | 2 ... 15 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | yes | |
| Temperature variation | = 10 % | |
| No-load input current | = 15 mA | |
| Delay time prior to availability | = 100 ms | |
| Load resistance | min. 20 kO | |
| State indication for switching | LED, yellow | |
| electronic output | ||
| resulting value | object detected: 4.5 V ± 0.2 V Object not detected: 0.5 V ± 0.2 V |
|
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
|
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | cable | |
| Housing material | brass, coated with white bronze | |
| detection surface | PBT , green | |
| Protection等级 | IP68 / IP69K | |
| Cable | ||
| Cable thickness | 6 mm ± 0.2 mm | |
| Curvature radius | > 10 x cable diameter | |
| Material | TPE | |
| Color | black | |
| Core count | 3 | |
| cross section of the core | 0.75 mm2 | |
| Length | 2 m | |
| Measurements | ||
| Length | 50 mm | |
| Diameter | 30 mm | |
| Overview information | ||
| Contents of shipment | 2 self-locking nuts included in the delivery scope | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NBB15-30GM40-EU-M1
