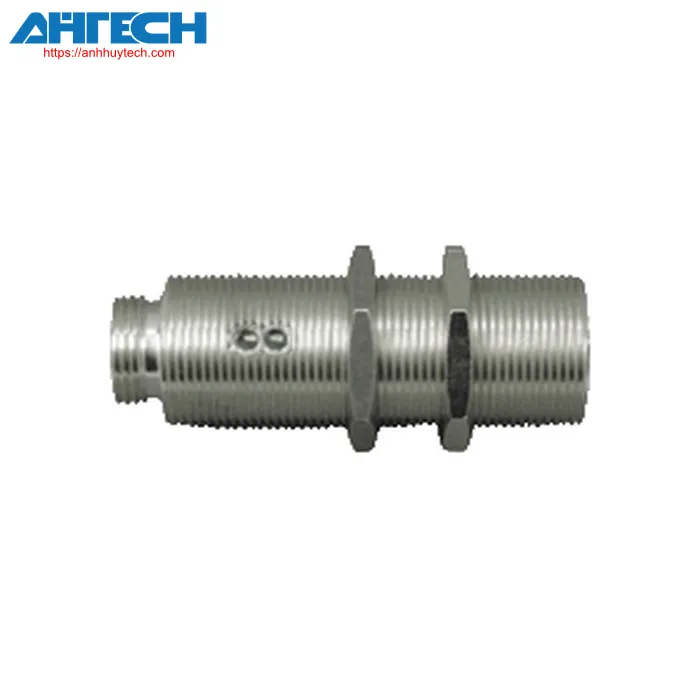

Inductive Sensor Pepperl+Fuchs NBB15-30GM50-US-V12
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBB15-30GM50-US-V12
| Overall specifications | ||
|---|---|---|
| transition function | normally open (NO) | |
| Output configuration | Two-wire | |
| Specified functioning distance | 15 mm | |
| mounting | flush | |
| Output configuration | AC/DC | |
| diminution factor rAl | 0.5 | |
| diminution factor rCu | 0.45 | |
| diminution factor r304 | 0.75 | |
| Output configuration | 3-wire | |
| Rated specifications | ||
| commutation frequency | 30 Hz | |
| Deadband | 3 ... 15 % typ. 5 % | |
| Polarity reversal protection | reverse polarity resistant | |
| Overcurrent protection | yes | |
| voltage loss | = 8 V | |
| Nominal functioning current | 4 ... 500 mA AC/DC | |
| Non-conducting current | = 0.8 mA | |
| Voltage functioning indicator | LED, green | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 1036 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Electrical parameters | ||
| Nominal functioning voltage | 20 ... 250 V AC/DC | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use | |
| CSA certification | cCSAus Listed, Intended for General Use | |
| CCC certification | Approved by China Compulsory Certification (CCC) | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | plug connector | |
| Housing material | brass with a nickel coating | |
| detection surface | PBT | |
| Protection等级 | IP67 | |
| Connector device | ||
| Threading process | 1/2"-20 UN | |
| Pin count | 3 | |
| Measurements | ||
| Length | 60 mm | |
| Diameter | 30 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NBB15-30GM50-US-V12
Download PDF
