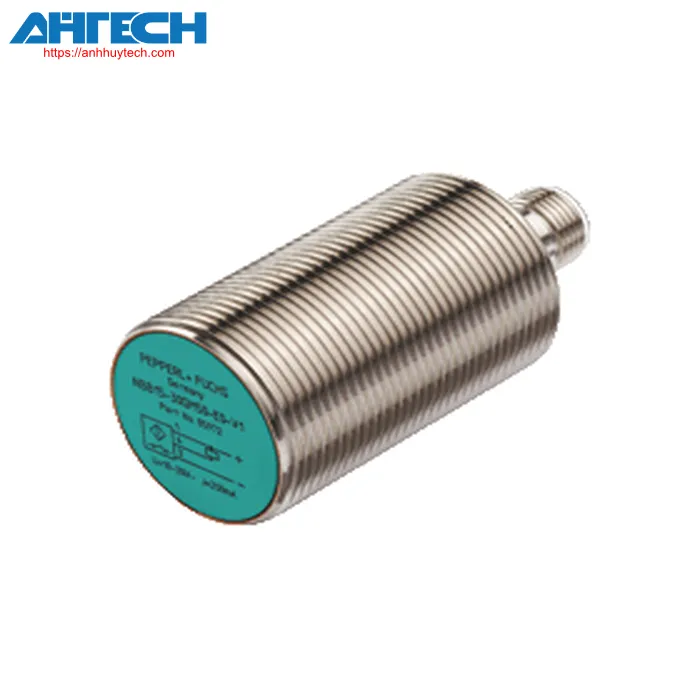

Inductive Sensor Pepperl+Fuchs NBB15-30GM60-B3B-V1

Pepperl+Fuchs Categories

Inductive Sensor Pepperl+Fuchs nbb15-30gm60-b3b-v1

Inductive Sensor NBB15-30GM60-B3B-V1

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo  Contact via Zalo Phone call  Phone call
Share on:
Description Download Accessories

Datasheet excerpt: Technical data of  NBB15-30GM60-B3B-V1

Classifications

Item Specification
AS-Connection point
Overall specifications
transition functionProgrammable normally open/closed (NO/NC)
Output configurationAS-Connection point
Specified functioning distance15 mm
mountingflush
Guaranteed functioning distance0 ... 12.15 mm
diminution factor rAl 0.4
diminution factor rCu 0.4
diminution factor r304 0.7
diminution factor rBrass 0.5
Node typeA/B node
AS-Connection point standardsV3.0
Mandatory gateway specification= V2.1
Output configuration2-wire
Rated specifications
Operational voltage26.5 ... 31.9 V through AS-i bus system
commutation frequency0 ... 200 Hz
Deadband1 ... 15 % typ. 5 %
Polarity reversal protectionreverse polarity safeguarded
No-load input current= 25 mA
State indication for switchingbi-color LED, yellow
Fault indicatordual-LED, crimson
Parameters related to functional safety
MTTFd1700 a
task duration (TM)20 a
Diagnostic Range (DC)0 %
Adherence to standards and directives
Compliance with standards
StandardsEN IEC 60947-5-2
Certifications and approvals
UL certificationcULus Certified, Standard Use
CCC certificationCCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature-25 ... 70 °C (-13 ... 158 °F)
Ambient storage temperature-40 ... 85 °C (-40 ... 185 °F)
Mechanical characteristics
Linkage methodplug connector
Housing materialbrass with a nickel coating
detection surfacePBT
Protection等级IP67
Connector device
Threading processM12 x 1
Pin count4
Measurements
Length65 mm
Diameter30 mm

Download Specification for NBB15-30GM60-B3B-V1

Download PDF
