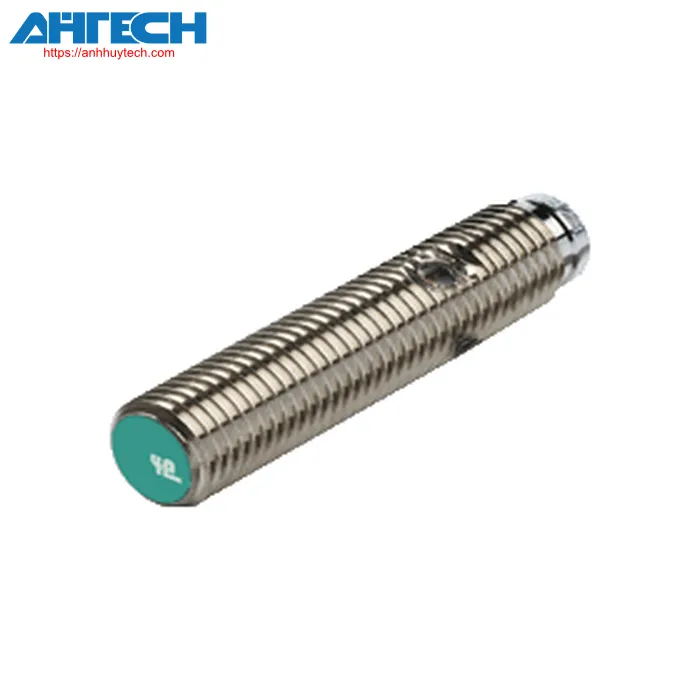

Inductive Sensor Pepperl+Fuchs NBB1,5-8GS40-E2-T-V3
Pepperl+Fuchs Categories
Inductive Sensor NBB1,5-8GS40-E2-T-V3
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBB1,5-8GS40-E2-T-V3
| Overall specifications | ||
|---|---|---|
| transition function | normally open (NO) | |
| Output configuration | PNP | |
| Specified functioning distance | 1.5 mm | |
| mounting | flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 1.215 mm | |
| Actuating component | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 8 mm x 8 mm x 1 mm |
|
| diminution factor rAl | 0.38 | |
| diminution factor rCu | 0.2 | |
| diminution factor r304 | 0.8 | |
| diminution factor rBrass | 0.45 | |
| Output configuration | 3-wire | |
| Rated specifications | ||
| Operational voltage | 10 ... 30 V | |
| commutation frequency | 0 ... 1500 Hz | |
| Deadband | 0.01 ... 0.33 mm | |
| Polarity reversal protection | yes | |
| Overcurrent protection | yes | |
| Overload capacity | yes | |
| Cable breakage protection | yes | |
| Inductive surge protection | yes | |
| Overvoltage protection | yes | |
| Ripple | 10 % | |
| voltage loss | = 2.5 V | |
| Repeatability accuracy | 0.05 mm | |
| Operational current | 0 ... 200 mA | |
| Non-conducting current | 0.01 mA | |
| No-load input current | = 7 mA | |
| State indication for switching | Yellow multihole LED | |
| Parameters related to functional safety | ||
| MTTFd | 2090 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 100 °C (-13 ... 212 °F) | |
| Ambient storage temperature | -40 ... 100 °C (-40 ... 212 °F) | |
| Mechanical characteristics | ||
| Linkage method | Connector device jack M8 x 1, 3-contact | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| detection surface | PBT | |
| Protection等级 | IP67 | |
| Mass | 7 g | |
| Measurements | ||
| Length | 45 mm | |
| Diameter | 8 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NBB1,5-8GS40-E2-T-V3
Download PDF
