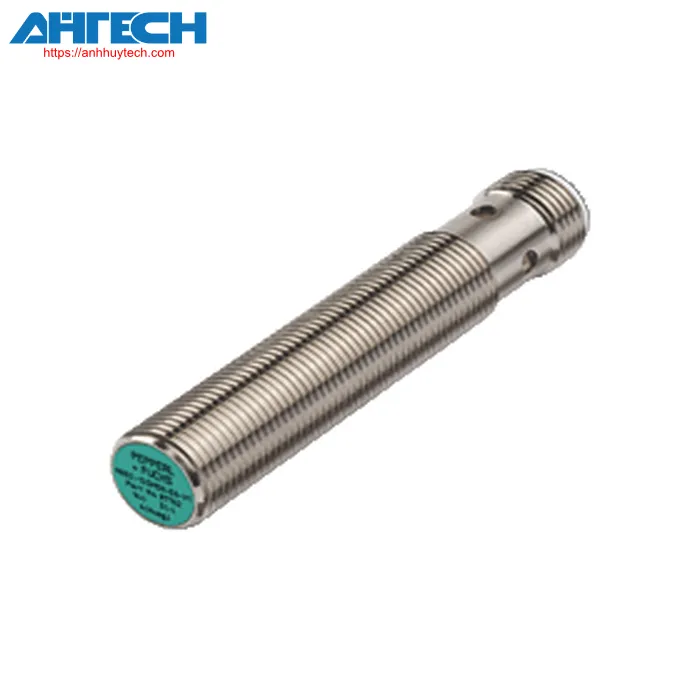

Inductive Sensor NBB2-12GM35-A2-V1-M1
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBB2-12GM35-A2-V1-M1
| Overall specifications | ||
|---|---|---|
| transition function | supplementary | |
| Output configuration | PNP | |
| Specified functioning distance | 2 mm | |
| mounting | flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 1.62 mm | |
| Actuating component | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 12 mm x 12 mm x 1 mm |
|
| diminution factor rAl | 0.4 | |
| diminution factor rCu | 0.3 | |
| diminution factor r304 | 0.75 | |
| diminution factor rBrass | 0.45 | |
| Output configuration | 4-wire | |
| Rated specifications | ||
| Operational voltage | 7 ... 30 V | |
| commutation frequency | 0 ... 2200 Hz | |
| Deadband | typ. 5% | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| voltage loss | = 2 V | |
| Operational current | 0 ... 200 mA | |
| Non-conducting current | 0 ... 0.5 mA typ. 4 µA at 25 °C | |
| No-load input current | = 10 mA | |
| Delay time prior to availability | = 100 ms | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 1723 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| Ingress protection rating | II | |
| Nominal insulation voltage | 36 V | |
| Rated surge voltage withstand capability | 500 V | |
| UL certification | cULus Certified, Standard Use, Class 2 Power Supply | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | plug connector | |
| Housing material | brass with a nickel coating | |
| detection surface | PBT , green | |
| Protection等级 | IP68 / IP69K | |
| Connector device | ||
| Threading process | M12 x 1 | |
| Pin count | 4 | |
| Mass | 15 g | |
| Measurements | ||
| Length | 51 mm | |
| Diameter | 12 mm | |
| Mounting | with fasteners, M12 | |
| Fastening torque | 0 ... 10 Nm | |
| Overview information | ||
| Contents of shipment | 2 self-locking nuts included in the delivery scope | |
