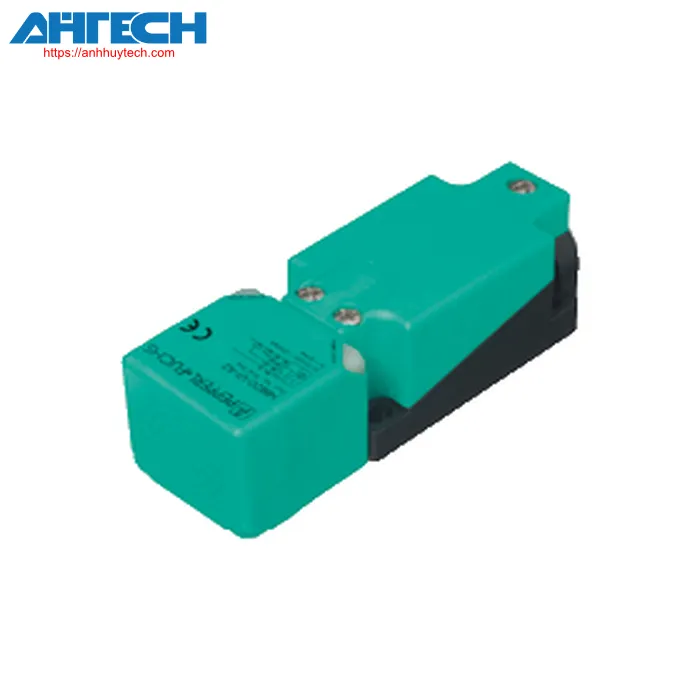

Inductive Sensor NBB20-U1K-Z2-Y70138534
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBB20-U1K-Z2-Y70138534
| Overall specifications | ||
|---|---|---|
| transition function | Normally open/closed (NO/NC) | |
| Output configuration | Two-wire | |
| Specified functioning distance | 20 mm | |
| mounting | flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 16.2 mm | |
| Actual sensing distance | 18 ... 22 mm typ. 20 mm | |
| diminution factor rAl | 0.3 | |
| diminution factor rCu | 0.3 | |
| diminution factor r304 | 0.7 | |
| Output configuration | 2-wire | |
| Rated specifications | ||
| Operational voltage | 5 ... 60 V DC | |
| commutation frequency | 0 ... 250 Hz | |
| Deadband | typ. 5 % | |
| Polarity reversal protection | reverse polarity resistant | |
| Overcurrent protection | yes | |
| voltage loss | = 5 V | |
| voltage reduction at IL | ||
| Voltage reduction IL = 100 mA, actuating element activated | ... 5 V | |
| Operational current | 2 ... 200 mA | |
| Non-conducting current | 0 ... 0.5 mA | |
| State indication for switching | 2 LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 1162 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | screw terminals | |
| Linkage information | Up to two conductors with identical core cross-section may be connected to a single terminal connection! torque specification 1.2 Nm + 10 % |
|
| cross section of the core | up to 2.5 mm2 | |
| Minimum conductor cross-section | without cable end sleeves 0.5 mm2 , incorporating connector sleeves 0.34 mm2 | |
| Maximum core cross-section area | without cable end sleeves 2.5 mm2 , featuring connector sleeves 1.5 mm2 | |
| Housing material | PA | |
| detection surface | PA | |
| enclosure base | plastic | |
| Protection等级 | IP68 / IP69K | |
| Mass | 225 g | |
| Measurements | ||
| Height | 40 mm | |
| Width | 40 mm | |
| Length | 118 mm | |
| Note | tightening torque: 1.8 Nm (enclosure) | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NBB20-U1K-Z2-Y70138534
