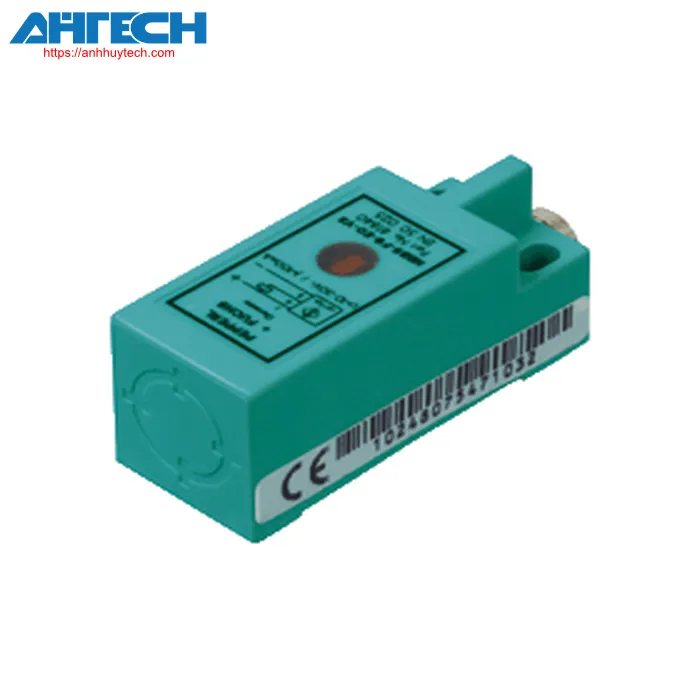

Inductive Sensor Pepperl+Fuchs NBB5-F9-E2-V3

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
transition function		normally open (NO)
Output configuration		PNP
Specified functioning distance		5 mm
mounting		flush
Output configuration		DC
Guaranteed functioning distance		0 ... 4.05 mm
diminution factor r_Al		0.3
diminution factor r_Cu		0.2
diminution factor r₃₀₄		0.6
Output configuration		3-wire
Rated specifications
Operational voltage		10 ... 30 V DC
commutation frequency		0 ... 500 Hz
Polarity reversal protection		reverse polarity safeguarded
Overcurrent protection		pulsing
voltage loss		= 3 V
Operational current		0 ... 150 mA
Non-conducting current		0 ... 0.5 mA typ. 0.1 µA at 25 °C
No-load input current		= 15 mA
State indication for switching		LED, yellow
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Standard Use
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical characteristics
Linkage method		8 mm connector plug 3-pin, featuring snap locking
Housing material		PBT
detection surface		PBT
Protection等级		IP67
Measurements
	Height	16.5 mm
	Width	16 mm
	Length	38.5 mm
