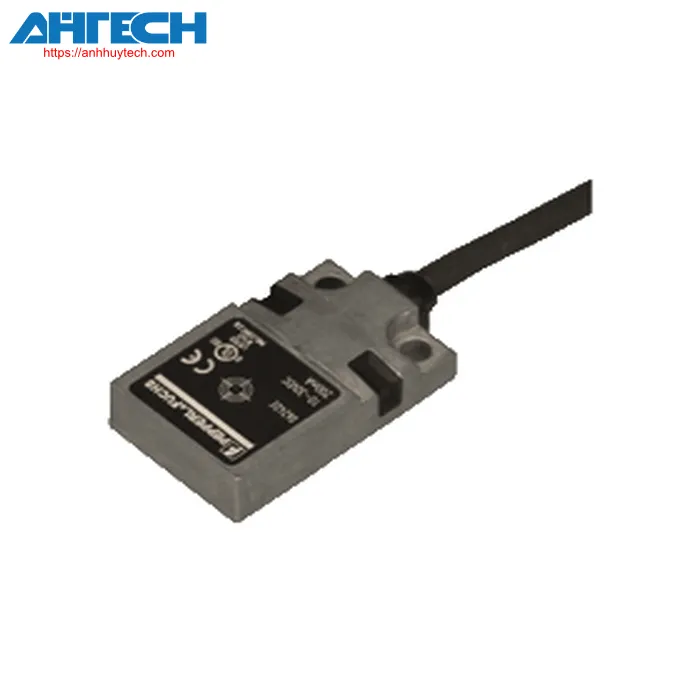

Inductive Sensor Pepperl+Fuchs NBB7-F104M-A2

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
transition function		supplementary
Output configuration		PNP
Specified functioning distance		7 mm
mounting		flush
Output configuration		DC
Guaranteed functioning distance		0 ... 5.6 mm
diminution factor r_Al		0.30 - 0.45
diminution factor r_Cu		0.25 - 0.45
diminution factor r₃₀₄		0.60 - 1.00
diminution factor r_St37		1
Output configuration		4-wire
Rated specifications
Operational voltage		10 ... 30 V DC
commutation frequency		150 Hz
Polarity reversal protection		reverse polarity safeguarded
Overcurrent protection		pulsing
voltage loss		= 2.5 V
Operational current		200 mA
Non-conducting current		= 80 µA
No-load input current		= 15 mA
State indication for switching		LED
Adherence to standards and directives
Compliance with standards
	Standards	IEC / EN 60947-5-2:2004
Certifications and approvals
UL certification		cULus Certified, Standard Use
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical characteristics
Linkage method		cable PUR , 2 m
cross section of the core		0.14 mm²
Housing material		GD-Zn
detection surface		PA 12
Protection等级		IP67
Measurements
	Height	8 mm
	Width	20 mm
	Length	32 mm
