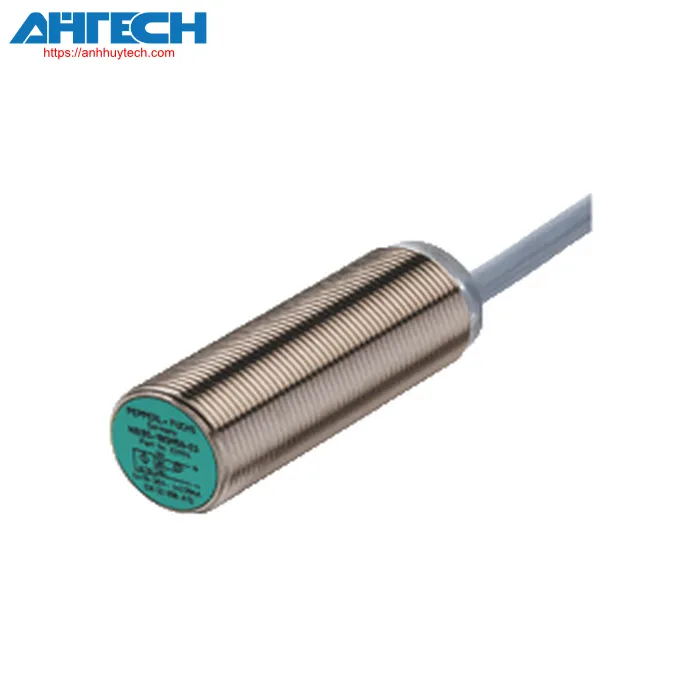

Inductive Sensor Pepperl+Fuchs NBB8-18GM50-E2-M-Y266288

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
transition function		normally open (NO)
Output configuration		PNP
Specified functioning distance		8 mm
mounting		flush
Output configuration		DC
Guaranteed functioning distance		0 ... 6.48 mm
diminution factor r_Al		0.45
diminution factor r_Cu		0.4
diminution factor r₃₀₄		0.7
Output configuration		3-wire
Rated specifications
Operational voltage		10 ... 30 V
commutation frequency		0 ... 400 Hz
Deadband		typ. 5 %
Polarity reversal protection		reverse polarity safeguarded
Overcurrent protection		pulsing
voltage loss		= 2.5 V
Operational current		0 ... 200 mA
Non-conducting current		0 ... 0.5 mA typ. 0.1 µA at 25 °C
No-load input current		= 10 mA
Delay time prior to availability		= 60 ms
State indication for switching		omnidirectional LED, yellow
Parameters related to functional safety
MTTF_d		2070 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Standard Use
E1 certification approval		10R-04
Environmental conditions
Ambient temperature		-40 ... 85 °C (-40 ... 185 °F)
Mechanical characteristics
Linkage method		Cable connector PUR, length = 0.6 m
Linkage unit		AMP connector housing 282105-1 AMP connector model 282109-1 AMP seal 281934-2
cross section of the core		0.75 mm²
Housing material		brass with a nickel coating
detection surface		PBT
Protection等级		IP68 / IP69K
Measurements
	Length	50 mm
	Diameter	18 mm
